Making a Selection
Almost all of the tools in BlastLogic require you to make a selection of data. In BlastLogic, you can either select objects in the data explorer or in the view window.
For more information on modifying the type of selection, see Selection toolbar.
Selecting objects
To select an object, you can use either of the following methods:
-
Click on the object in the data explorer.
-

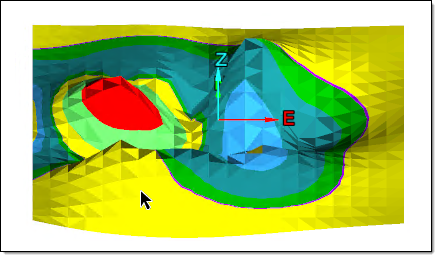

If the object is open in a view window, you can click on it in this view.
Selecting holes
You can use the following options when selecting holes:
-

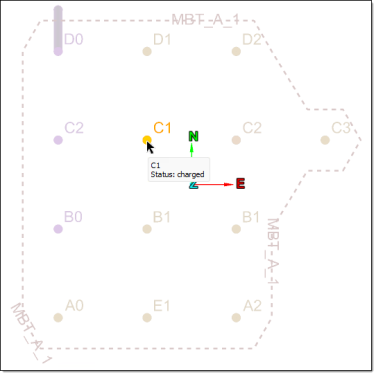

To select a single hole, load the associated blast into the view window and click on the desired hole.
-

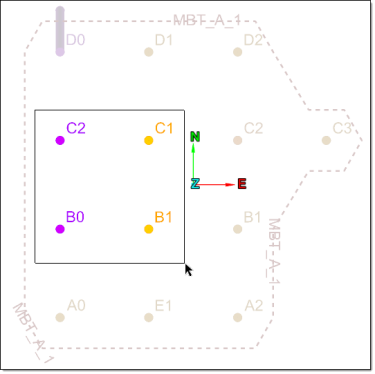

To select a group of holes in a blast, click and drag the cursor over the desired holes in the view window.
-

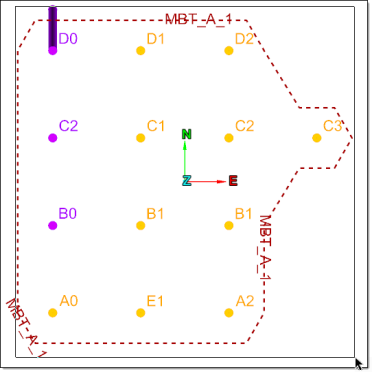

To select all of the holes in a blast, you can click and drag the cursor over all the holes in the view window or select Holes under the associated blast container in the data explorer.
