Tie-Up

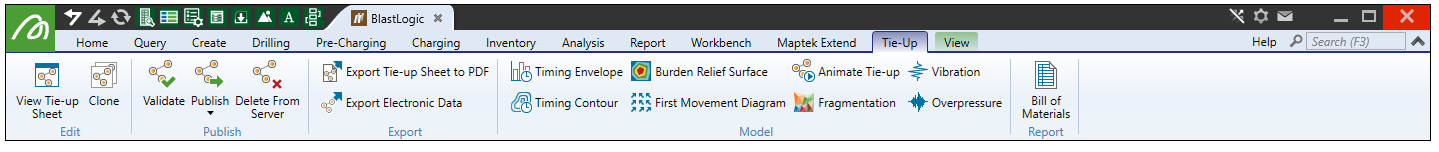

The Tie-Up context sensitive ribbon contains tools specifically related to tie-ups.

Tool Location on the ribbon Operation
Design Tie-up Sheet Tie up context sensitive ribbon
> Edit group
> Design Tie-up Sheet		 For information on designing a tie-up sheet, see Design Tie-up Sheet.
Clone Tie up context sensitive ribbon
> Edit group
> Clone		 To clone a tie-up, follow these steps:

  1. Select a tie-up in the data explorer or view window.

  2. On the Tie-Up ribbon, in the Edit group, select Clone. BlastLogic will clone the tie-up and add the cloned version to the blast’s Tie-up folder. BlastLogic will also open the cloned tie-up in the view window.
Validate Tie up context sensitive ribbon
> Publish group
> Validate		 To validate a tie-up, follow these steps:

  1. Select the tie-up in the data explorer or view window.

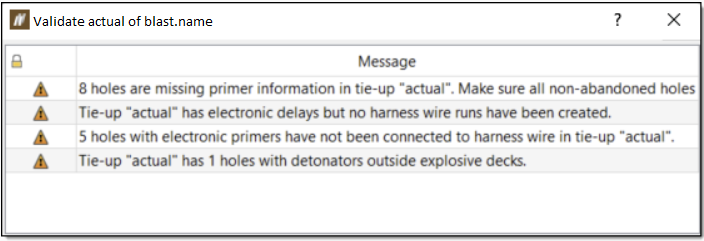

  2. On the Tie-Up context ribbon, in the Publish group, select Validate. The Validate <tie-up name> of <blast name> panel will appear, displaying any tie-up warnings and messages.

    Note:  If you have not published the tie-up to the server, you will be able to interact with the messages by selecting the buttons in the Action column.
Publish Tie up context sensitive ribbon
> Publish group
> Publish		 For information on publishing a tie-up, see Publishing a tie-up.
Delete From Server Tie up context sensitive ribbon
> Publish group
> Delete from Server		 To delete a tie-up from the server, follow these steps:

  1. On the Tie-Up context sensitive ribbon, in the Publish group, select Delete From Server. A Question panel will appear.

  2. Review the panel message.

  3. Click Yes to delete the tie-up from the server. Click No to keep the tie-up on the server.
Export Tie-up Sheet to PDF Tie up context sensitive ribbon
> Export group
> Export Tie-up Sheet to PDF		 To export a tie-up sheet to a PDF, follow these steps:

  1. On the Tie-Up context sensitive ribbon, in the Export group, select Export Tie-up Sheet to PDF. The Export <tie-up sheet name> panel will appear.

  2. Specify an export location in the Save PDF to field by entering a folder location or by clicking and selecting the desired location from the file explorer.

  3. Review any warning messages in the Message column of the panel table.

  4. Click OK.
Export Electronic Data Tie up context sensitive ribbon
> Export group
> Export Electronic Data		 For information on exporting electronic data, see Exporting an electronic tie-up.
Timing Envelope Tie up context sensitive ribbon
> Model group
> Timing Envelope		 For information on generating a timing envelope diagram, see Timing Envelope.
Timing Contour Tie up context sensitive ribbon
> Model group
> Timing Contour		 For information on generating a timing contour diagram, see Timing Contour.
Burden Relief Surface Tie up context sensitive ribbon
> Model group
> Burden Relief Surface		 For information on generating a burden relief surface diagram, see Burden Relief Surface.
First Movement Diagram Tie up context sensitive ribbon
> Model group
> First Movement Diagram		 For information on generating a first movement diagram, see First Movement Diagram.
Animate Tie-up Tie up context sensitive ribbon
> Model group
> Animate Tie-up		 For information on animating a tie-up , see Animate Tie-up.
Fragmentation Tie up context sensitive ribbon
> Model group
> Fragmentation		 For information on modelling fragmentation, see Fragmentation Modelling.
Vibration Tie up context sensitive ribbon
> Model group
> Vibration		 For information on modelling vibration, see Vibration Modelling.
Overpressure Tie up context sensitive ribbon
> Model group
> Overpressure		 For information on modelling the overpressure, see Overpressure Modelling.
Bill of Materials Tie up context sensitive ribbon
> Report group
> Bill of Materials		 To generate a Bill of Materials report, follow these steps:

  1. Select a tie-up in the data explorer or view window.

  2. On the Tie-Up context ribbon, in the Report group, select Bill of Materials. BlastLogic will open the Bill of Materials report in a new view window. This report contains a table of the quantities and symbols of the blast products used in the tie-up.
