View

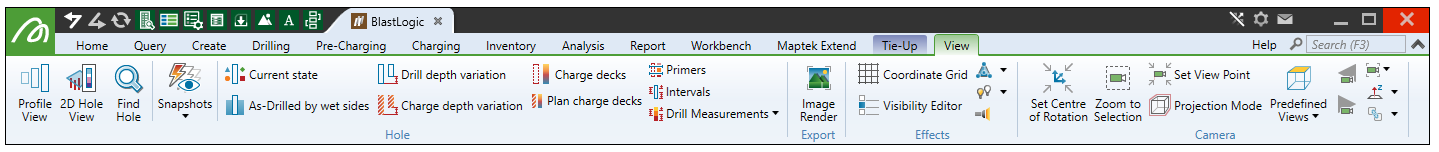

The View context sensitive ribbon contains tools specifically related to the view window.

Tool	Location on the ribbon	Operation
Profile view	View context sensitive ribbon > Hole group > Profile View	For information on the hole profile view, see Profile.
2D Hole View	View context sensitive ribbon > Hole group > 2D Hole View	Select 2D Hole View to bring up a side panel displaying a 2D view of the selected holes.
Find Hole	View context sensitive ribbon > Hole group > Find Hole	For information on finding holes in the view window, see Find Hole.
Snapshots	View context sensitive ribbon > Hole group > Snapshots	For information on Snapshots, see Snapshot.
Current State	View context sensitive ribbon > Hole group > Current State	Select Current State to display the current state of the holes in the view window.
As-Drilled by wet sides	View context sensitive ribbon > Hole group > As-Drilled by wet sides	Select As-Drilled by wet sides to colour the holes in the view window by their dip information.
Drill depth variation	View context sensitive ribbon > Hole group > Drill depth variation	Select Drill depth variation to colour the holes by the difference in their design and as-drilled depth.
Charge depth variation	View context sensitive ribbon > Hole group > Charge depth variation	Select Charge depth variation to colour the holes by the difference in their charge and as-drilled depth.
Charge decks	View context sensitive ribbon > Hole group > Charge decks	Select Charge decks to display the charge decks in each hole in the view window.
Plan charge decks	View context sensitive ribbon > Hole group > Plan charge decks	Select Plan charge decks to display the planned charge decks of each hole in the view window.
Primers	View context sensitive ribbon > Hole group > Primers	Select Primers to display the primer information and charge decks of each hole in the view window.
Intervals	View context sensitive ribbon > Hole group > Intervals	Select Intervals to display the intervals in each hole in the view window.
Drill Measurements	View context sensitive ribbon > Hole group > Drill Measurements	Select a drill measurement from the Drill Measurements drop-down, to view the corresponding measurements of the holes in the view window.
Capture Scene	View context sensitive ribbon > Export group > Capture Scene	The Capture Scene drop-down contains the Image Render tool. For information on this tool, see Image Render.
Coordinate Grid	View context sensitive ribbon > Effects group > Coordinate Grid	Select Coordinate Grid to display a coordinate grid over the view window.
Visibility Editor	View context sensitive ribbon > Effects group > Visibility Editor	For information on the Visibility Editor, see Visibility Editor.
Surface Render Mode	View context sensitive ribbon > Effects group > Surface Render Mode	For information on the surface render modes, see Surface render mode.
Side Light	View context sensitive ribbon > Effects group > Side Light	The Side Light drop-down allows you to change the headlight direction to alter the display of shadows.
Headlight	View context sensitive ribbon > Effects group > Headlight	Select Headlight to turn the headlight on in the view window.
Set Centre of Rotation	View context sensitive ribbon > Camera group > Set Centre of Rotation	For information setting the centre of rotation, see Set Centre of Rotation.
Zoom to Selection	View context sensitive ribbon > Camera group > Zoom to Selection	Select Zoom to Selection to zoom into a selected area in the view window.
Set View Point	View context sensitive ribbon > Camera group > Set View Point	Select Set View Point to select a point in the view window to set as the position and orientation of the view camera.
Projection Mode	View context sensitive ribbon > Camera group > Projection Mode	For information on the projection modes, see Projection mode.
Predefined Views	View context sensitive ribbon > Camera group > Predefined Views	For information on predefined views, see Predefined views.
Camera Back	View context sensitive ribbon > Camera group > Camera Back	Select Camera Back to switch back to the previous camera view.
Camera Forward	View context sensitive ribbon > Camera group > Camera Forward	Select Camera Forward to go to the next camera view.
Saved Cameras	View context sensitive ribbon > Camera group > Saved Cameras	Select the Saved Cameras drop-down to view or select saved camera views. You can also select Save Camera from the drop-down to save the current camera view or select Manager... to edit, import or export cameras.
Set Manipulation Mode	View context sensitive ribbon > Camera group > Set Manipulation Mode	For information on manipulation modes, see Manipulation mode.
Tie To	View context sensitive ribbon > Camera group > Tie To	For information on tying multiple windows, see Tied views.
