Tie-up

Source file: context-menus-tieup.htm

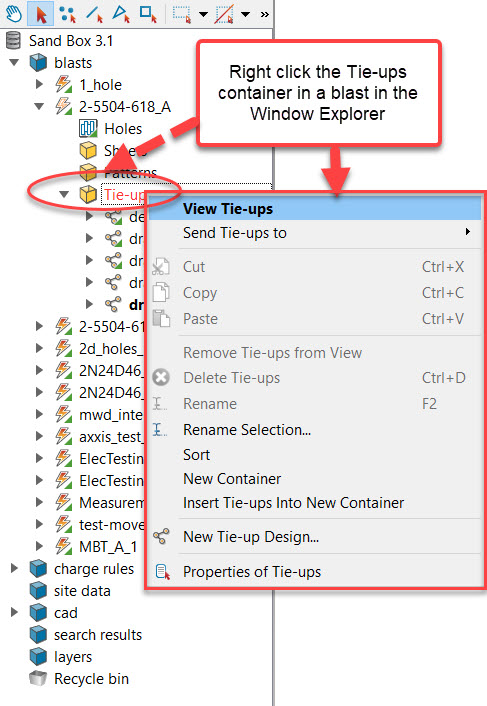

A context menu for tie-ups belonging to a particular blast can be viewed by right-clicking the Tie-ups container underneath the blast name in the Windows Explorer.



View Tie-ups	Loads existing tie-up in current view window.
Send Tie-ups to	Loads existing tie-up in a particular view window.
New tie-up design	Initialises a new tie-up design based on the type of detonators added in the charge design. For more information, click here.
Properties of tie-ups	Reports the following properties on tie-ups: name, allowed products, hole count, dummy hole count, connector count.
