Drill Measurements

Source file: drill-measurements.htm

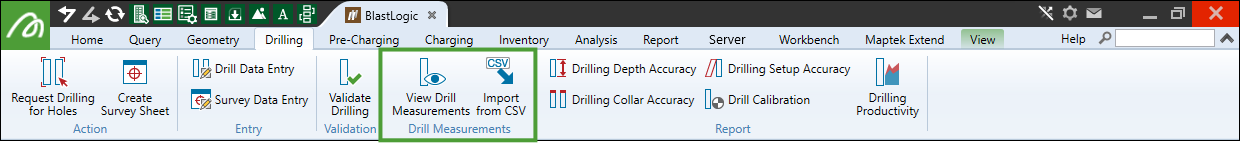

The Drill Measurements group on the Drilling ribbon contains tools that allow you to import and view drill measurements.

View Drill Measurements

The View Drill Measurements tool allows you to view the drill properties of selected holes.

To view the drill measurements, follow these steps:

1. Select the desired holes in the view window or project explorer.

2. On the Drilling ribbon, in the Drill Measurements group, select View Drill Measurements. The Hole Properties panel, which displays the Drill measurements tab, will appear. This tab presents the drill measurement properties defined in the Drill measurements tab (Home ribbon > Setup group > Site).

   Note:  For more information on the Hole Properties tab, see the Hole Properties section of the Hole topic.

Import from CSV

To import drilling data from a CSV file, see the Importing a CSV file section of the Data topic.
