Sheet

Source file: context-sheet.htm

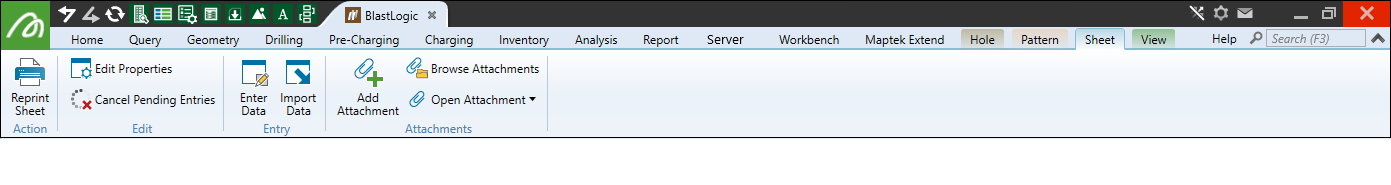

The Sheet context sensitive ribbon contains tools specifically related to sheets.

Tool Location on the ribbon Operation
Reprint Sheet Sheet context sensitive ribbon
> Action group
> Reprint Sheet		 Select the Reprint Sheet tool to re-open the selected sheet in the view window. You can then reprint the sheet from the view window.
Edit Properties Sheet context sensitive ribbon
> Edit group
> Edit Properties		 You can edit the properties of a sheet by:

  1. Clicking the sheet in the project explorer.

  2. Going to Sheet > Edit > Edit Properties.

The properties that are available to edit will depend on the type of sheet (dip, backfill, charge or survey) you are editing. In general, there are three categories of sheet properties: PDF properties, Sheet options, which display the options that are available on the BlastLogic Tablet but can be modified in the BlastLogic Desktop application, and Tablet properties that are shown on the BlastLogic Tablet.

PDF properties are as follows:

  • Show last known depth column. Check this field if you want to display the last known depth column.

  • Show water column. Check this field if you want to display the water column.

  • Show wet-sides column. Check this field if you want to display the wet-sides column.

Sheet options are as follows:

  • Show temperature column. Check this field if you want to display the temperature column on the BlastLogic Tablet.

  • Crew check percentage. Enter the percentage of rows you would like to be checked by the crew. These rows will have a checkbox field next to them to indicate if the data has been checked by the crew.

  • Supervisor check dip percentage. Enter the percentage of rows you would like to be checked by the supervisor. These rows will have a checkbox field next to them to indicate if the data has been checked by the supervisor.

Tablet properties are as follows:

  • Show target drill depth

  • Show target charge depth
Cancel Pending Entries Sheet context sensitive ribbon
> Edit group
> Cancel Pending Entries		 To cancel the pending entries of a sheet, follow these steps:

  1. On the Sheet context sensitive ribbon, in the Edit group, select the Cancel Pending Entries. The Abandon <sheet name> panel will appear.

  2. Review the panel information.

  3. Click OK to abandon the sheet.
Enter Data Sheet context sensitive ribbon
> Entry group
> Enter Data		 For information on entering each type of data, see the following:
Drilling dataDrill Data Entry
Survey dataSurvey Data Entry
Dip dataDip Data Entry
Backfill dataBackfill Data Entry
Charge dataCharge Data Entry
Import Data Sheet context sensitive ribbon
> Entry group
> Import Data		 For information on importing data, see Import.
Add Attachment Sheet context sensitive ribbon
> Attachments group
> Add Attachment		 For information on the Add Attachment tool, see the Add attachment section of the Attachment topic.
Browse Attachments Sheet context sensitive ribbon
> Attachments group
> Browse Attachments		 For information on the Browse Attachments tool, see the Browse attachments section of the Attachment topic.
Open Attachment Sheet context sensitive ribbon
> Attachments group
> Open Attachment		 The Open Attachment tool allows you to view and open attachments associated with the selected sheet. Select the tool drop-down to view the attachments and select the desired attachment to open it in a new view window.
