Update Charge Plans

Source file: update-charge-plans.htm

The Update Charge Plans tool allows you to update a charge plan. If you make changes to the hole geometry and you have already applied a charge plan, you must update the charge plan manually.

To update a charge plan, follow these steps:

1. Select the holes you have made changes to.

2. On the Charging ribbon, in the Design group, select Update Charge Plans.

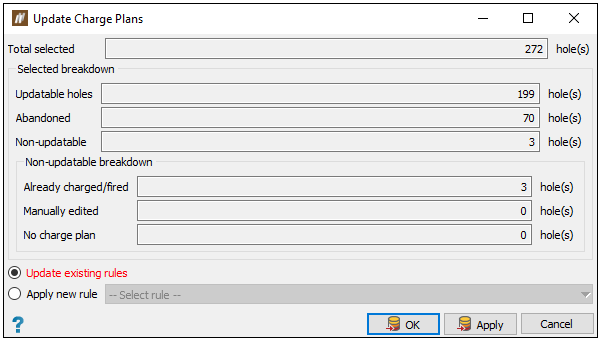

   The Update Charge Plans panel will appear. BlastLogic displays the information about the holes, including a breakdown of non-updatable holes.



3. Select a radio button option at the bottom of the panel. You can select one of the following options:

   • Update existing rules. Select this option to reapply the existing charge rules linked to the selected holes.

   • Apply new rule. Select this option to apply a new charge rule to the selected holes. Choose the desired charge rule from the drop-down list.

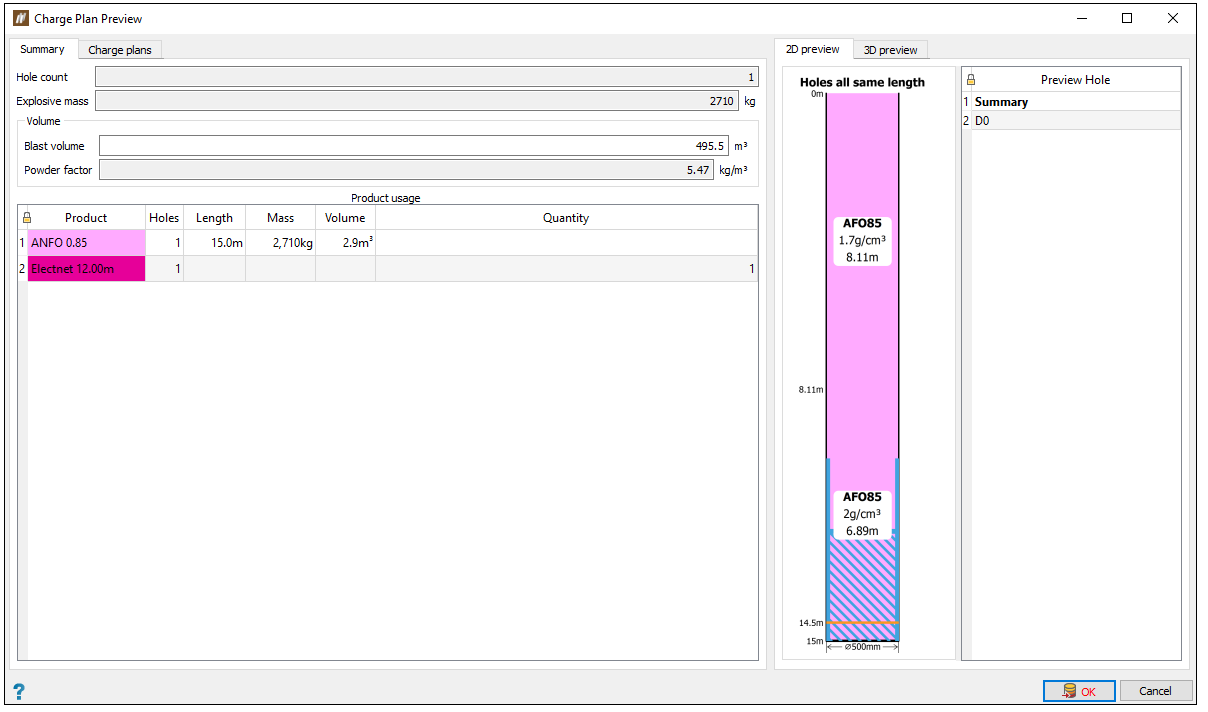

4. Click OK or Apply. The Charge Plan Preview panel will appear.



5. Click OK. If the changes applied are undesirable, click Cancel.
