Block Models

Source file: origin-block-models.htm

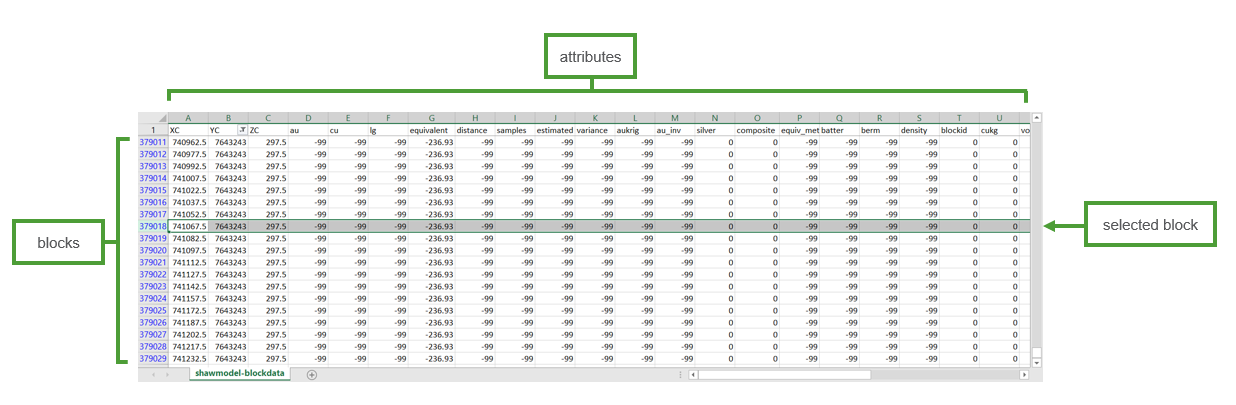

A block model consists of a table of information and a 3D model which consists of a number of small units which all share the same shape and dimensions.

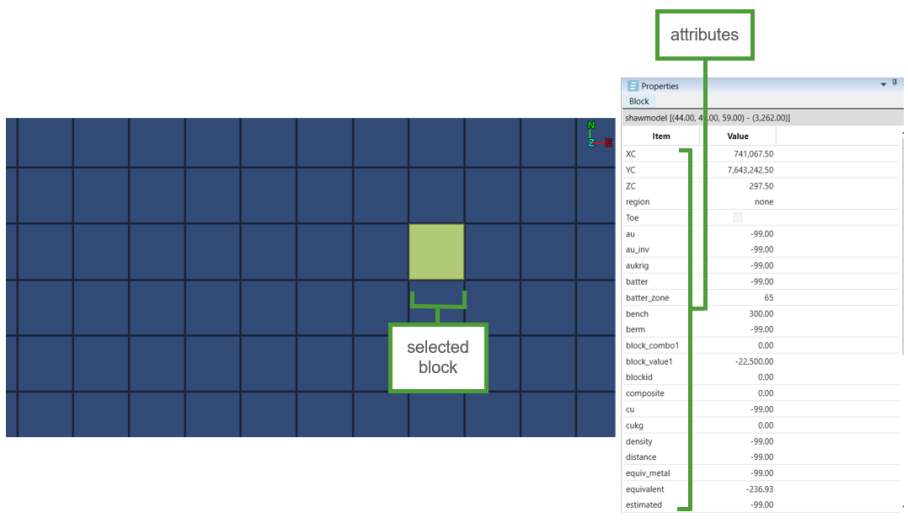

The set of attributes related to each block in a model is stored in the Properties tab.

See also:  Properties

Block models are added to Origin Block setups and Strategy setups.

There are two types of block models that can be added to a setup: a block pit and a waste utility. The block pit represents a mine pit, while the waste utility represents a waste storage site. A single setup can have multiple block models of each type.
