Ore Exposure
Source file: strategy-setups-constraints-ore-exposure.htm
The Ore Exposure constraint specifies the amount of ore material that can be mined in a period to ensure that there is enough ore supply in the benches below the mining areas.
Note: The Ore Exposure constraint is a soft constraint, which means that Evolution will try to meet it when generating a schedule, but doing so is not forced.

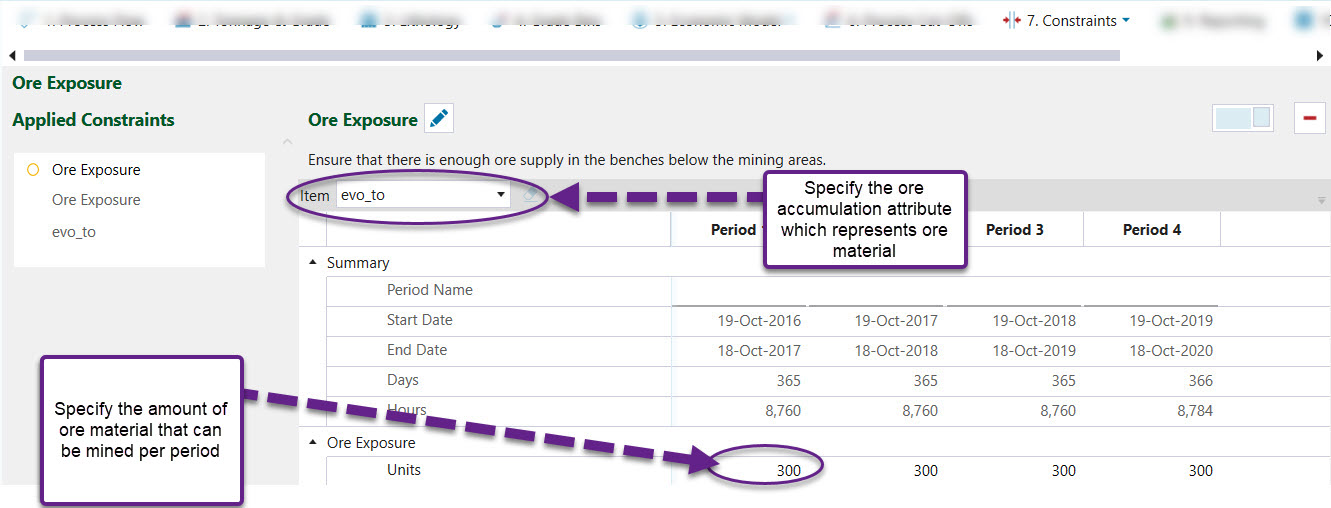

/ore-exposure-screen.png)
The Item drop-down menu allows you to specify the ore accumulation attribute that represents the ore material. After applying this setting, specify the amount of ore material that can be mined in each period under the Ore Exposure category in the table.
/ore-exposure-example-setting_988x494.png)
-
Click the
button once to copy the properties of the current period to the next period. -
Double-click the
button to copy the properties of the current period to the subsequent periods until the end of the schedule. -
Alternatively, copy a cell's setting using Ctrl+C , then paste it into selected cells with Ctrl+V.
