Importing Data

Note:  Your role must have the Manage Surface Uploads permission enabled to import data. See Site Settings > Roles for more information.

The surface model represented in GeoSpatial Manager is an as-built model derived from many individual source surfaces. Each source surface in turn may have been derived from one or many sources. The Import tool allows you to upload source surface files, which GeoSpatial Manager then automatically merges into the as-built surface.

Tip:  You can also upload surfaces directly from PointStudio into a Geospatial Manager project. See Publish to Geospatial Manager in PointStudio help.

The Import tool also allows you to upload GeoTIFF image files associated with the surface model to be stored in an associated Mapbox account.

Note

  • GeoSpatial Manager must be configured for use with a Mapbox account before you can upload images. See Surface Imagery for more information.

  • If ArcGIS is the preferred imagery provider, images cannot be uploaded via GeoSpatial Manager. They must be uploaded directly to ArcGIS. Procedures for this are beyond the scope of this site.

Tip:  When initially importing multiple historical surfaces, import the oldest surface first, then check the visualisation before importing the remaining surfaces.

To upload surfaces or images, follow these steps:

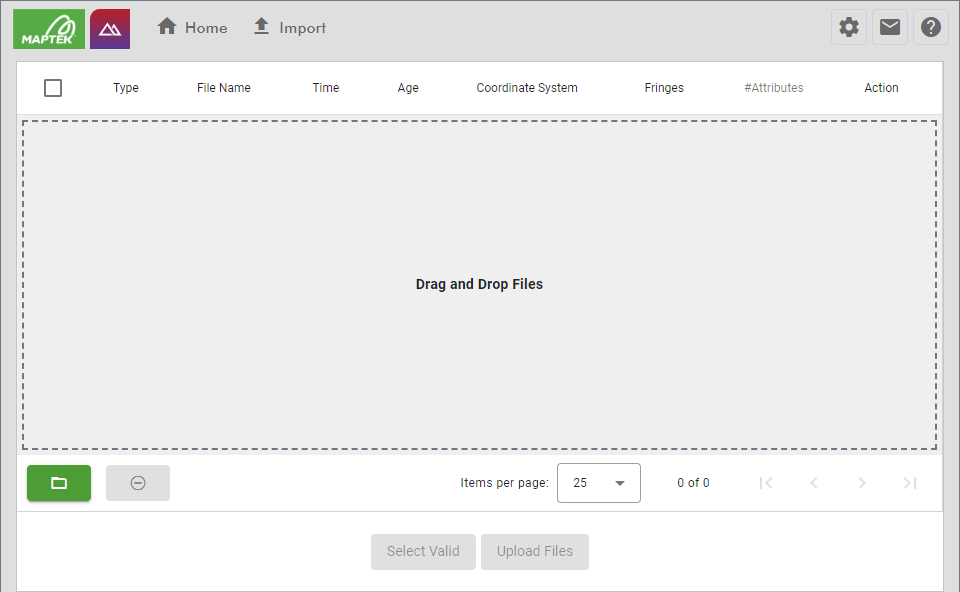

  1. Click Import located at the top of the page. A page will display that allows you to import files.

  2. Specify one or more files for upload. There are two ways to do this, as follows:

    • Drag files directly from Windows File Explorer and drop them into the area in the middle of the page labelled Drag and Drop Files.

    • Click the (Add new files) button. In the file browser that opens, select the files you want to import, then click Open.

    Note

    Surface files must be one of the following formats:

    • Vulcan Triangulation file (.00t)

    • Maptek Object file (.maptekobj). Maptek Object files must contain exactly one surface.

    • AutoCAD DXF file (.dxf)

    • Wavefront OBJ file(.obj)

    Images must be GeoTIFF files (.tif, .tiff) that correctly georeference the surface model.

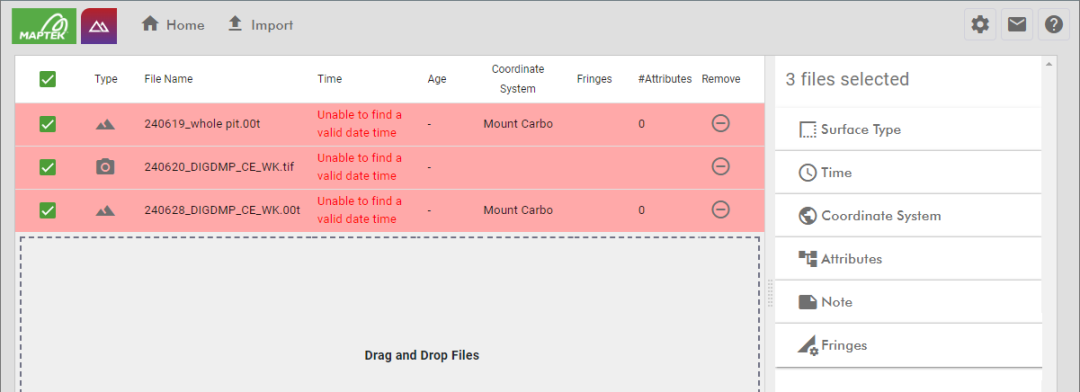

    After you have specified the files, they appear in a list with each new file highlighted in red. The red highlight indicates that GeoSpatial Manager needs more information about the file before it can be imported, explained in the next step.

  3. Configure the settings of each file.

    To the right of the file list are several tabs where you can configure the details of selected files.

    Select one or more files by making sure their checkboxes are selected in the file list. Then, configure each detail section on the right, such as Time or Coordinate System, by selecting the section and filling out the fields as necessary.

    Note:  Required fields in each section are marked with an asterisk (*). These fields must be set before you can proceed with surface import. When you have configured all required fields, the Upload Files button will become enabled.

    Expand below for information on each file setting category.

    Surfaces can be of either of the following types:

    • As-built surfaces are merged together to create an overall view of the terrain at particular time.

    • Design surfaces are unmerged surfaces that act as fixed points of reference for the terrain.

    Surfaces are imported as as-built by default. For any design surfaces, click Surface Type and select Design.

    GeoSpatial Manager needs to know the date and time that each surface or image represents to ensure they appear in the correct chronological order. If your surface or image filenames follow a systematic naming scheme incorporating the date and time, you can configure GeoSpatial Manager to automatically parse the date and time from the filename. Otherwise, you can set the date and time (or just the time component) manually.

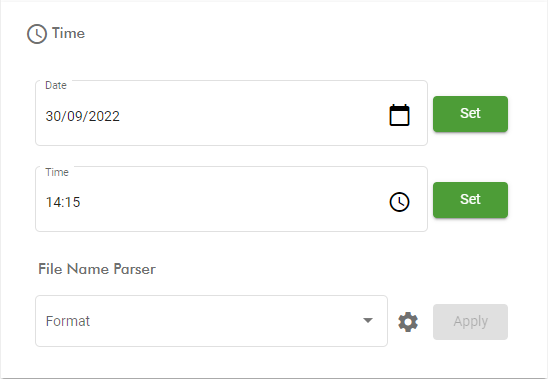

    To set the date and time for selected files, make sure the  Time tab on the right is expanded.

    Setting the date and time manually

    • To set the date manually, click the button in the Date field. In the calendar tool that appears, select the date corresponding to the selected files, then click Set to apply the date.

    • To set the time manually, click the button in the Time field. In the panel that appears, select the time for the selected files in 24-hour clock format. Click Set to apply the time.

    Parsing file names automatically

    To parse file names for the date and time, you need to specify or configure the date and time parser.

    • To use an existing filename parser, select it from the File Name Parser drop-down, and press Apply.

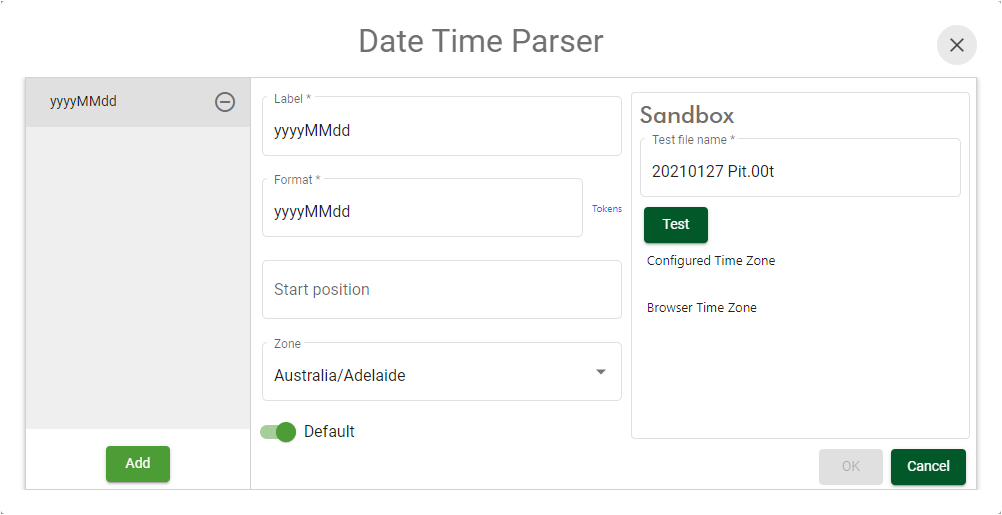

    • To configure a new date and time parser, click the button to the right of the File Name Parser drop-down. In the Date Time Parser panel that appears, you can create and configure any number of named date and time parsing formats.

      Note:  You must be assigned a role that has the Edit Settings permission enabled to configure date and time parsers.

      To create a new parsing format, click Add, then configure the format as detailed below.

      Label

      Enter a unique name for the parsing format.
      Format

      Enter the date and time format corresponding to the file naming scheme. You need to specify the format in terms of a sequence of tokens that represent the expected date or time component, or other tokens such as separators. The most common tokens are shown in the table below.

      Token Description Example
      yyyy Year 2023
      MM Month as a two-digit padded number 09
      dd Day of the month as a two-digit padded number 30
      HH Hour in 24-hour time as a two-digit padded number 14
      mm Minutes as a two-digit padded number 15
      ss Seconds as a two-digit padded number 00

      As an example, the date and time 2:15 pm, September 30, 2023 might be represented in a filename using the ISO 8601 format as 2023-09-30T141500. A format that can correctly parse such a string would be yyyy-MM-ddTHHmmss.

      Click the Tokens link to the right of the Format field for a complete listing of all possible tokens.
      Start position

      Optionally specify the position within the filename to start searching for the date and time from. A positive number will trim N characters from the beginning, while a negative number will trim N characters from the end.
      Zone

      Select the time zone applicable to interpreted dates and times.
      Default

      Enable this option to set the parsing format to the default. This means you won’t need to manually select the file format parser each time you import a surface.
      Sandbox

      As you define the format, you can test the result of applying the format to a filename in the Sandbox area on the right-hand side of the panel. Enter a filename in the Test file name field, and click Test.

    GeoSpatial Manager needs to know the coordinate system that each surface is in to correctly geolocate it. To set the coordinate system for selected surfaces, make sure the  Coordinate System tab on the right is expanded.

    • Select an existing coordinate system from the drop-down list and click Set to apply it.

    • Click to the right of the drop-down list to manage coordinate systems. See Site Settings > Coordinate Systems for detailed information.

      Note:  You must be assigned a role that has the Edit Settings permission enabled to manage coordinate systems.

    If you have a default coordinate system configured, this will be applied automatically to imported surfaces, but you can override this if necessary.

    Attributes are small pieces of information encoded as key–value pairs associated with a surface. You can associate an arbitrary number of textual attributes with an imported surface. Depending on configuration, an attribute field can be either required or optional. You can inspect the attribute associated with an imported surface by checking its details in the Surface Items list.

    • To apply attributes to selected surfaces:

      1. Make sure the  Attributes tab on the right is expanded.

      2. Fill out each attribute field as required. Attribute fields flagged as being required will show by default. Depending on the configuration of the field, you may be able to select preset values from the drop-down list, or type in a non-preset value.

      3. Click Set.

    • To add predefined, optional attribute fields (if defined), click the button and select the required field from the drop-down list.

    • To remove an optional attribute field, click the button to the right of the field. Required attribute fields cannot be removed.

    • To create new or configure existing attribute fields, click the button.

      The Attributes Schema Editor allows you to configure attribute fields.

      Click Add to create a new attribute field, or select an existing field’s key from the list to change its settings. Configure the fields as follows:

      Field Name

      Enter a unique identifier for the attribute field.

      An attribute field cannot be renamed once it has been created. The Field Name field will not display for existing attribute fields.
      Enabled Marking the field as Enabled makes it available for addition to surfaces.
      Required Marking the field as Required makes the field mandatory. The user will need to set this attribute for every imported surface.
      Preset options Preset options are predefined values that appear in the field’s drop-down list. Click the button to add a new preset option and enter the value in the Preset field. Click the button to remove a preset option.
      Allow non‑preset options Enable this option to allow the user to enter arbitrary text for the attribute .
      Attribute field keys cannot be renamed or deleted once they have been created. If a key becomes obsolete, you can turn off the Enabled option to prevent it from appearing. If you need to rename a key, it is recommended to disable the existing key, and then create another key with the new name.

    To associate a note with imported surfaces:

    1. Make sure the  Note tab on the right is expanded.

    2. Enter the note in the text field.

    3. Click Set.

    Specify the up and down fringes to apply to the selected surfaces. To learn more about fringes, see Surface Model > Fringes.

    Tip:  An up fringe slopes up from the new surface towards the old surface. A down fringe slopes down from the new surface towards the old surface.

    • To select a preset up or down fringe, select a named fringe preset from the Up Fringe or Down Fringe drop-down list and click Set.

    • To set a custom up or down fringe, edit the values of the Angle and Maximum Distance fields and click Set.

    • To configure fringe presets, click the button to open the Fringe Presets panel.

      • Note:  You must be assigned a role that has the Edit Settings permission enabled to configure fringe presets.

      Fringe Presets allows you to define named fringe presets that can be selected by users when specifying surface up and down fringes.

      Click Add to create a new fringe preset, or select an existing preset from the list to change its settings. Configure the fields as follows:

      Name

      Enter a unique name for the fringe preset.
      Default Up Fringe Enabling this will cause this preset to be applied as the up fringe to new surfaces on import without having to be specified by the user.
      Default Down Fringe Enabling this will cause this preset to be applied as the down fringe to new surfaces on import without having to be specified by the user.
      Angle Enter the preset fringe angle value. The fringe angle is the slope of the fringe given as the angle from horizontal.
      Maximum distance

      Enter the preset maximum distance value. This is the maximum horizontal distance from the boundary of the new surface to extend outwards.

      Click Save to finish.

  4. Select the files you want to upload. You can do this by making sure their checkboxes are selected in the file list. If you have many files, you can select all valid files by clicking the Select Valid button.

    • To remove files from the list of surfaces to import, select their checkboxes in the file list and the click the (Remove all currently selected files) button.

  5. Click Upload Files to upload the selected files.

After uploading, GeoSpatial Manager queues files in chronological order for processing into the as-built surface. Switch to the Home page to view the surface.
