VisualContainer

A VisualContainer can be thought of as similar to a folder in a file system. Objects are stored within them. This class inherits from the Container class which is a type of container that can store objects, but not used in standard operation of the software.

When renaming or moving a container, by acting as a parent to all children under it, they will also get new paths.

Creating a visual container

A VisualContainer can be created two ways.

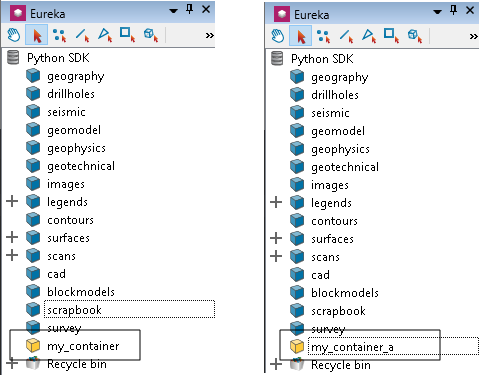

Example using Project.new() function. This approach is preferred for similarity with creation of other objects. It also conveniently handles the creation of a hierarchy defined by the given path that may not yet exist (e.g. the path '/1/2/3/4' would create 1, 2, 3, and 4):

from mapteksdk.project import Project
from mapteksdk.data import VisualContainer
proj = Project() # Connect to default project

# Create a VisualContainer under the project root
with proj.new("/my_container", VisualContainer):
    pass

Example using Project.create_visual_container() function. This may be less convenient if you need to create several sub-containers and requires the first parameter to be an already existing parent container:

from mapteksdk.project import Project
proj = Project() # Connect to default project

# Create a VisualContainer under the project root
proj.new_visual_container("/","my_container_a")

These objects can be referenced as part of a path for deleting, renaming, editing and creating objects. The root path is "/" or "". Working with objects under "my_container" would use the path "/my_container/object_name".

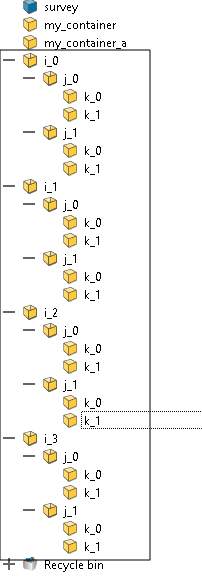

The following example demonstrates creation of a tree of containers:

from mapteksdk.project import Project
from mapteksdk.data import VisualContainer
proj = Project() # Connect to default project

for i in range(4):
    for j in range(2):
        for k in range(2):
            with proj.new("/i_{}/j_{}/k_{}".format(i, j, k), VisualContainer):
                pass


Note:  You do not need to create containers for new objects before creating the objects. If a path is used for a new object that would nest it in containers that don't yet exist, the SDK will manage their creation.

Other container examples

Deleting the contents of a container

Refer to example in Project Examples - Deleting contents of a container

Listing the contents of a container

Refer to example in Project Examples - Listing contents of a container

Listing all objects in all containers

Refer to example in Project Examples - Listing all objects in all containers
