Corners

This function allows you to select and change corner details where lines or edges connect. The available corner options include:

  • Fillet
  • Chamfer
  • Scallop

  1. On the Edit ribbon tab navigate to the Line group and select Corner.
    The Corner panel will open.

  2. Select the type of corner required. (Fillet, Chamfer or Scallop)

  3. Use point selection to select one or more corners then adjust the radius. Object selection is also possible in which case all corners will be modified. A preview of the modified corners is displayed as the slider for the radius is adjusted.


  4. Click OK or Apply to complete the action.

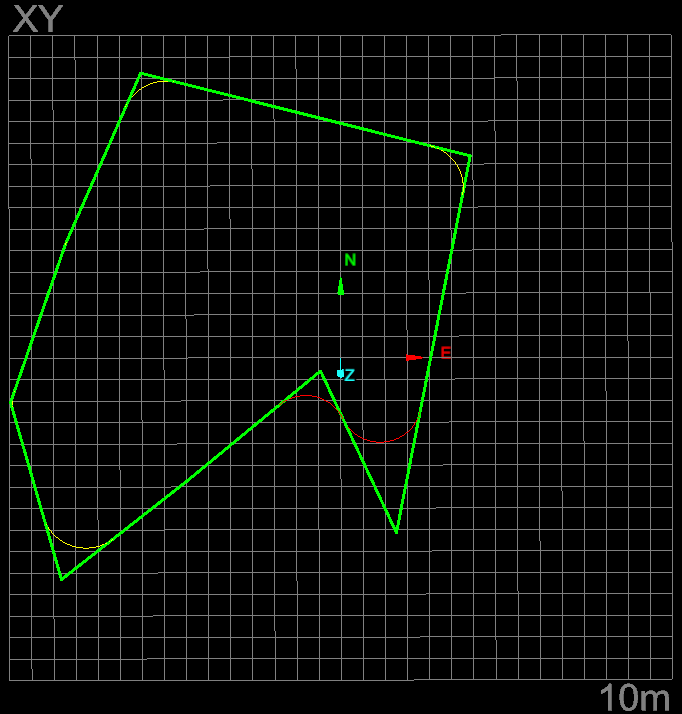

    Example of a shape with corners being modified. (Preview stage)

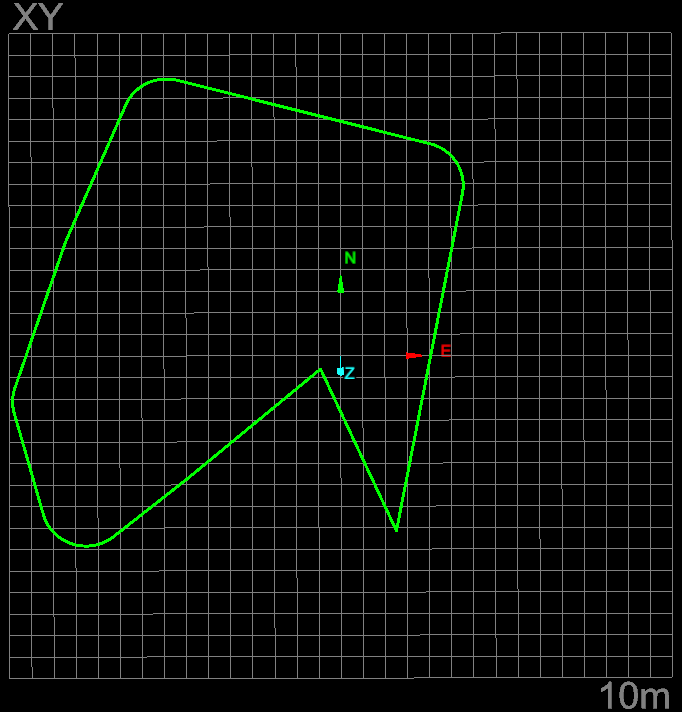

    Example of a shape with corners being modified. (Completed stage)
