Properties

View and edit the properties of a CAD object.

1. On the Edit ribbon tab navigate to the Properties group and select Properties.

2. Select the text, 3D text, a line, numeric legend, a marker or an attachment and it will automatically select the appropriate tab.

3. The editing functions depend on the type of the object selected. The editable fields are the same as the fields upon creation of those objects.

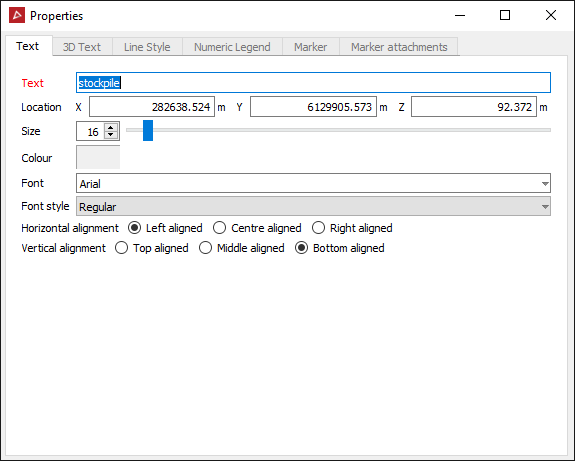

View and edit the Text

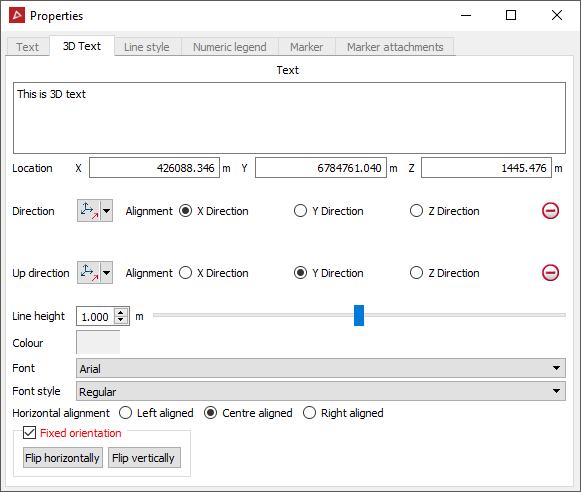

View and edit 3D Text

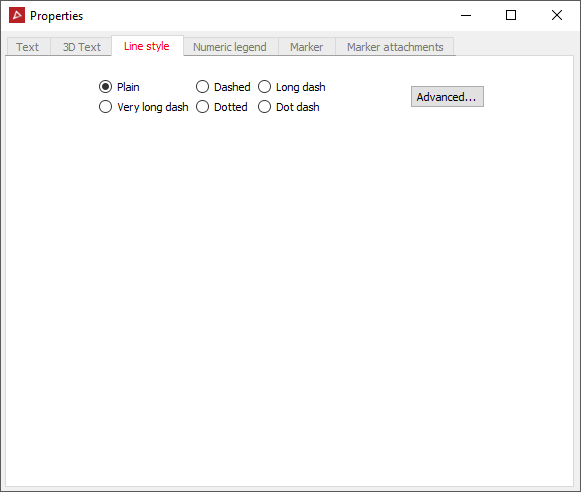

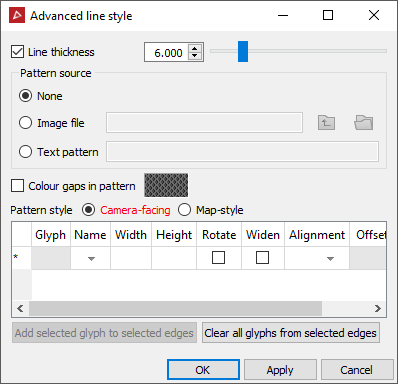

View and edit the Line Style

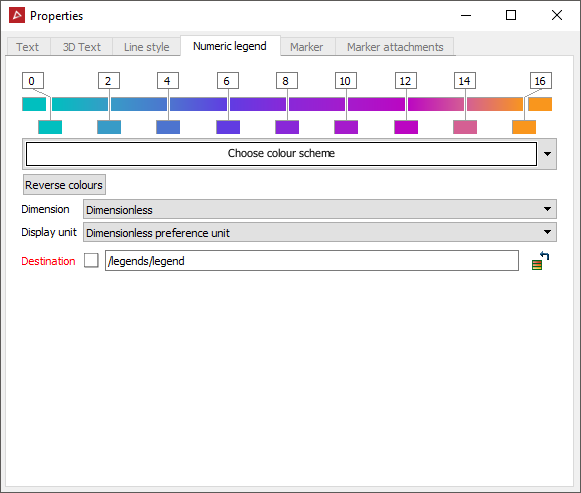

View and edit or create a custom Numeric Legend.

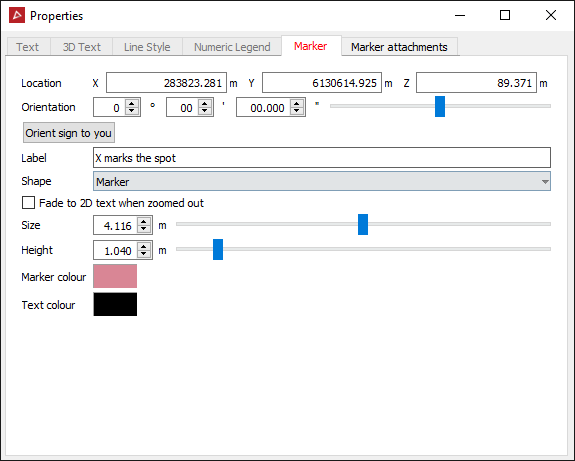

View and edit the Markers

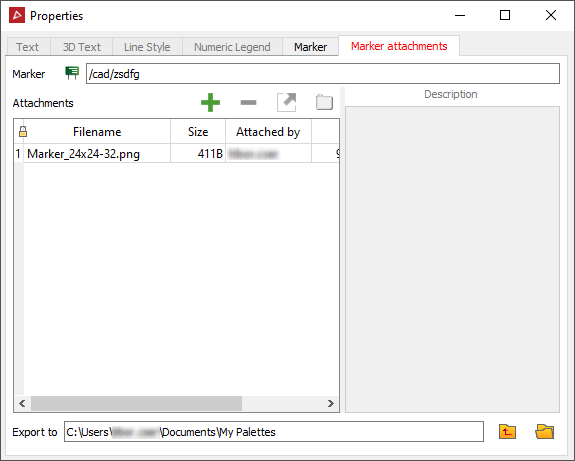

View and edit Marker Attachments
