Querying a Point

Point query displays spatial information about a specific point in a scan or any other data.

1. On the Query ribbon tab navigate to the Geometry group and selectPoint.

   This will launch the point dialog in the status bar.

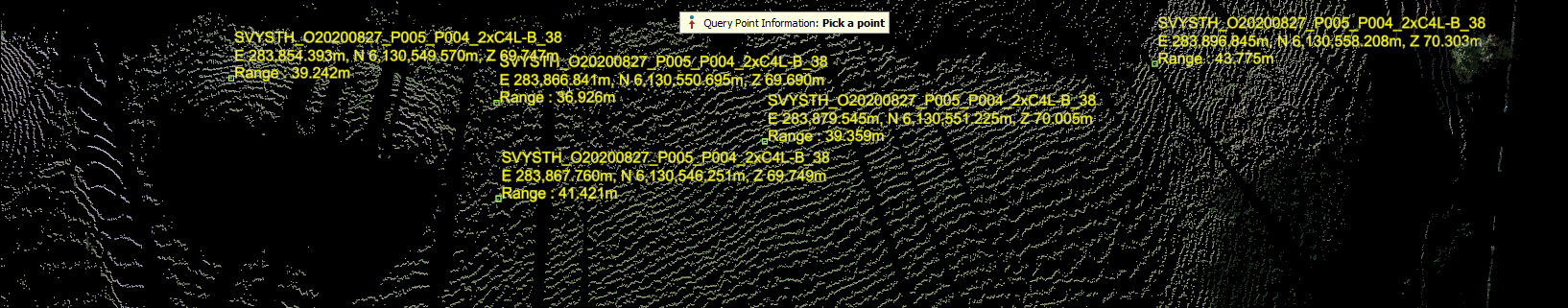

2. Click on the required point in the view window. Query Point Information is displayed in the view window and in the report window.

3. The process is repeatable until the cancel button is selected or the Esc key is pressed.

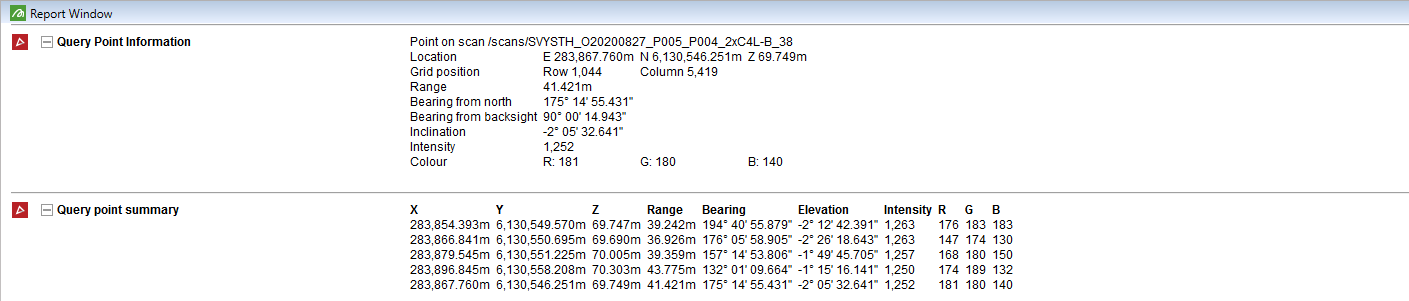

4. Press Enter to export this information as a text file. A Query point summary will be generated in the report window and the Query point information panel will open.



The above dialog enables a .txt file containing all the point data summaries to be saved to the specified location (the project location is selected by default).
