Fit

The Fitted Plane tool (Ctrl+K) allows you to create a plane-of-best-fit to a selection of points. This can be useful for querying the dip and strike of rock faces.

1. Using either the object or point selection type, select the points to have a plane fitted.

   Tip:  Use point selection type for a more precise fit to a specific area.

2. On the Create tab, go to the Create group. From the Fit drop-down list select Fit Plane.

   The Fitted Plane panel will appear.



3. Select whether the plane should be constrained Horizontally or Vertically, or select No constraint, which will use the best fit for the plane.

4. Select All selected points to use all the points in the selection to fit the plane, or select Best points to discard the outlying points.

5. Click OK or Apply.

The plane is saved as a surface in the cad container and is displayed in the view window, coloured the average colour of the selected points.

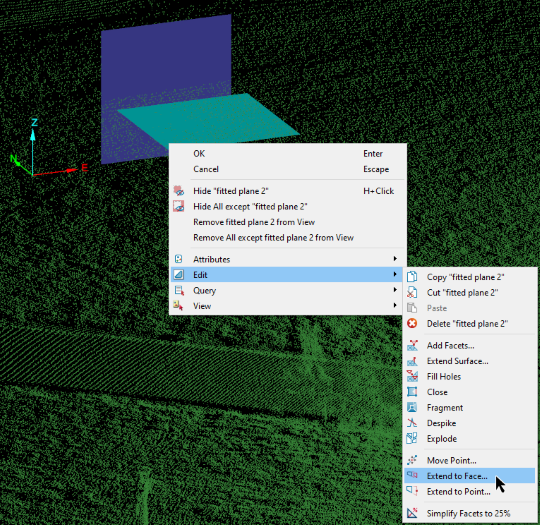

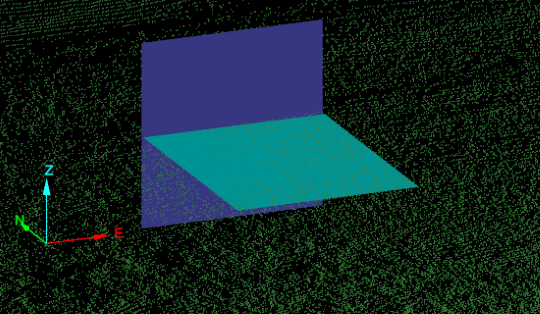

Tip:  To edit the fitted plane, right-click on the plane to open its context menu, hover over Edit select Extend to point then select the point to extend the plane to. Alternatively, select Extend to face then select the face to extend the plane to.

The Fit Line tool (Ctrl+J) allows you to create a line fitted to a selection of points.

1. Using either the object or point selection type, select the points to line a plane fitted.

   Tip:  Use point selection type for a more precise fit to a specific area.

2. On the Create tab, go to the Create group. From the Fit drop-down list select Fit Line.



3. Select whether the line should be constrained Horizontally or Vertically. No constraint will create a line of best fit.

4. Click OK or Apply. The line is saved in the cad container and is coloured the average colour of the selected points.

The Fit Circle tool (Ctrl+L) allows you to create a circle fitted to a selection of points.

1. Using either the object or point selection type, select the points to have a circle fitted.

   Tip:  Use point selection type for a more precise fit to a specific area.

2. On the Create tab, go to the Create group. From the Fit drop-down list select Fit Circle.




3. Select whether the circle should be constrained Horizontally or Vertically. No constraint will use the best fit to create the circle, regardless of orientation.

4. Click OK or Apply.

The fitted circle and its centre point are displayed in the view window, coloured the average colour of the selected points. They are also saved in the cad container.
