Apply an image to an object

Source file: apply-image-to-object.htm

Use these instructions for applying imported images to surfaces using the Two-point or Multi-point methods.

Important:  Set all monitors to the same resolution to ensure these tools display correctly.

  1. If you haven't already imported the image, you can do so by dragging it directly into an empty view window. The Import image panel will open.

  2. With Standard photograph to surface selected, click OK or Apply. The Position Image Using Multiple Points panel will open.

  3. Drag the surface to map the image onto into the Surface field. The surface will be loaded and displayed in the view window.

  4. Select one of the positioning methods and proceed accordingly.
    • Two-point requires a minimum of two point pairs to apply the image to a flat surface region.
    • Multi-point requires a minimum of eight point pairs to apply the image to a surface region.

Two points positioning uses at least two representative points on the input image and aligns them with two corresponding points in the 3D view. Point pairs are selected by the user. This method maps the input image directly onto the object as if though was illuminated by a projector. There are options to assist placement and orientation of the input image during the mapping process. These can be manually edited or automatically entered by selecting points on either the image or surface.

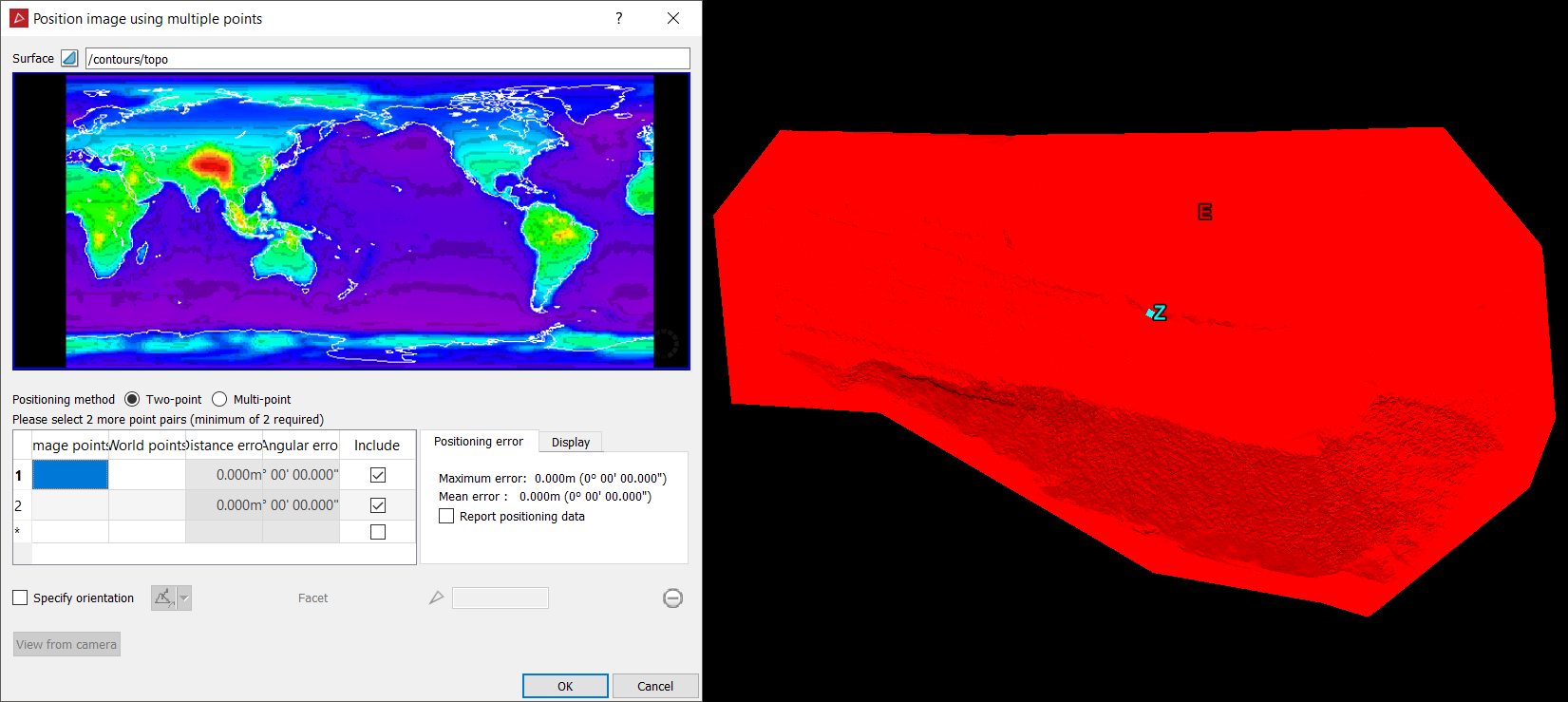

  1. Click in the first row of the points table under Image points.

  2. Click on the image to locate point 1.

    The cursor will advance to the World points column.

  3. Click on the surface for the corresponding point 1 location.

    Tip:  Use snap modes for more precise point selection.

    The cursor will jump to the next row.

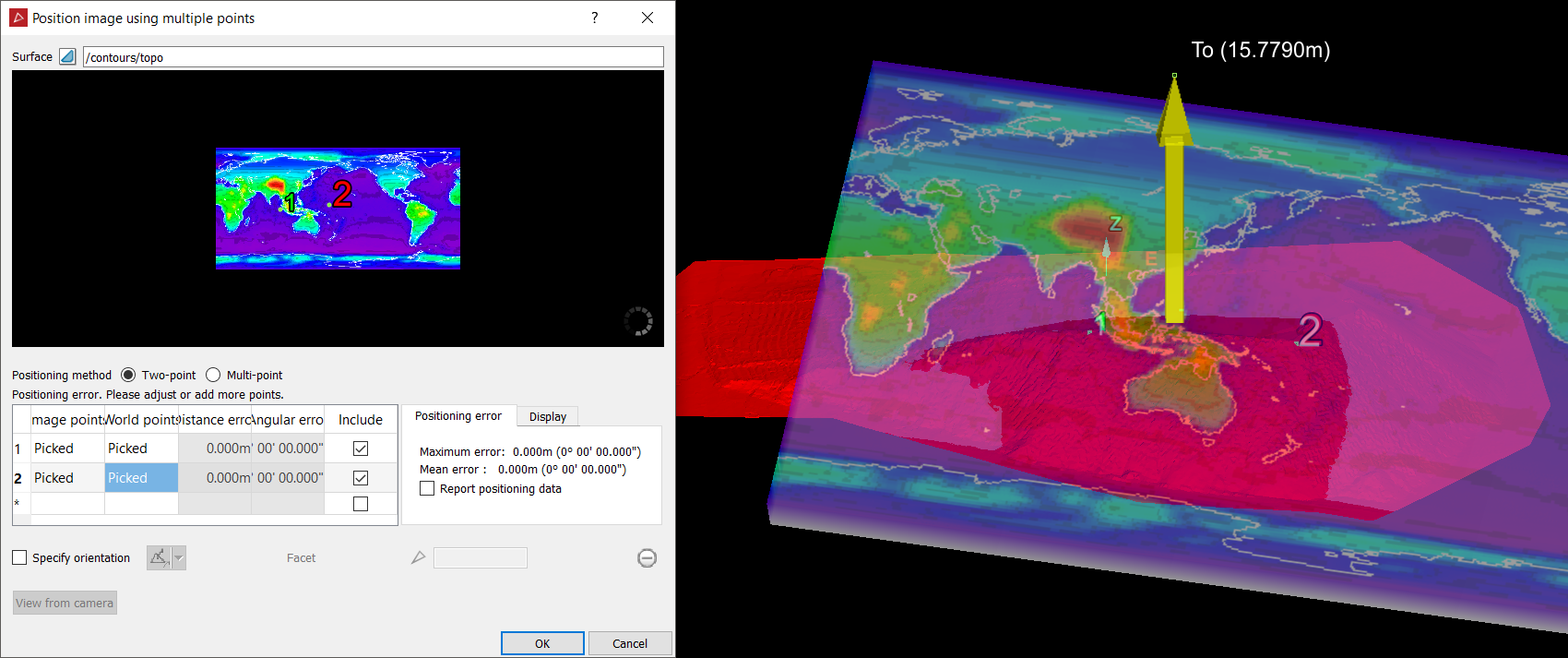

  4. Click on the image to locate point 2.

  5. Click on the surface for the corresponding point 2 location.

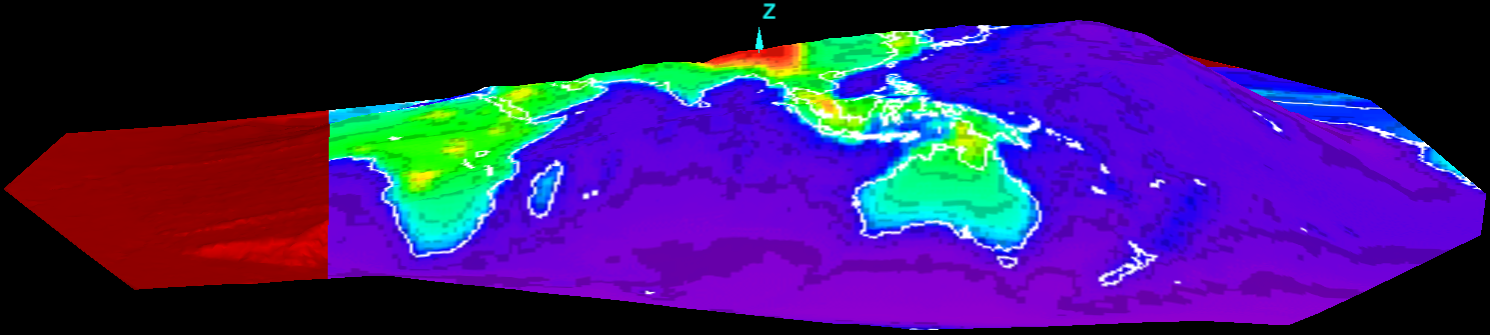

    A filtered version of the image is applied to the surface.

  6. Select Specify orientation to use other methods of mapping of the image.

    The initial positions of reference points 1 and 2 will remain fixed.

    To specify the orientation use one of the following options:

    • Two points: Creates a vector, which will rotate the image around the reference points
    • Facet: Aligns the mapping image with the plane of a selected facet.
    • Axis aligned: Aligns the mapping image with either the X,Y or Z axis.
    • Bearing and inclination: Creates a vector using bearing and orientation directions, to rotate the mapping image around the reference points.
    • Action plane axis: The active view aligns the mapping image with either the X or Y axis.

  7. Click OK to complete the mapping process.

Multi-points mapping applies a camera lens algorithm to the input image to attempt to compensate lens distortion. It then applies the image to a surface. You must select at least eight pairs of corresponding points between the input image and the mapping surface. The more point pairs you select the better the accuracy. Positioning error gives an indication of the variation between the actual points selected by the user and the estimation of points determined by the algorithm. Display options allow the user to see the difference between actual selected points and the algorithm mapping of these points, allowing for visual fine tuning of the positioning of these points.

  1. Click in the first row in the points table under Image points.

  2. Click on the image to locate point 1.

    The cursor will advance to the World points column.

  3. Click on the surface for the corresponding point 1 location.

    Tip:  Use snap modes for more precise point selection.

    The cursor will jump to the next row.

  4. Click on the image to locate point 2.

  5. Click on the surface for the corresponding point 2 position.

  6. Continue selecting points in the image and the corresponding points on the surface for the remaining six point pairs (minimum).

    7. Tip:  Press the scroll wheel and move the mouse to pan around. Scroll up or down to zoom in and out in the image.

  7. When you have selected sufficient point pairs and their positions are approximately correct relative to each other, the following options are activated to enable to assist with fine tuning, as follows:

    • Click View from camera to re-orient the view window to look from the camera location.

    • On the Display tab:

      • Select Camera position to display the camera's location, indicated by a grey pyramid shape.

      • Select Reprojected image points to compare point pairs in the view window. The image point positions are indicated by magenta lines radiating from the camera position.

      • Select Reprojected world points to compare point pairs in the image window. The surface point positions are displayed as magenta crosses.

  8. Click OK to complete the mapping process.

Additional tools are available

The Display options provide a visual guide to the algorithm process and allows comparison between your inputs and equivalent points determined by the algorithm.
