Join and Close

Source file: close-lines.htm

Use Join and close lines to connect groups of lines together.

1. Select the ends of the lines to be joined.

2. On the Edit ribbon tab, go to the Fix group and select Join and Close.

The closest end points of the selected lines will be joined together.

Note:  If the end points were not correctly joined, select the end points to connect using the Select points mode and run the option again.

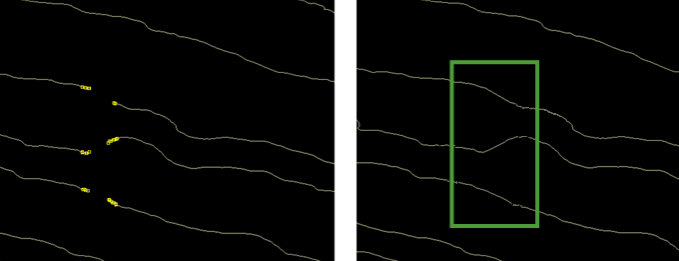

Contours with removed edges (left) and the edges reconnected (right).
