Horizontal Plane

Source file: create-a-horizontal-plane.htm

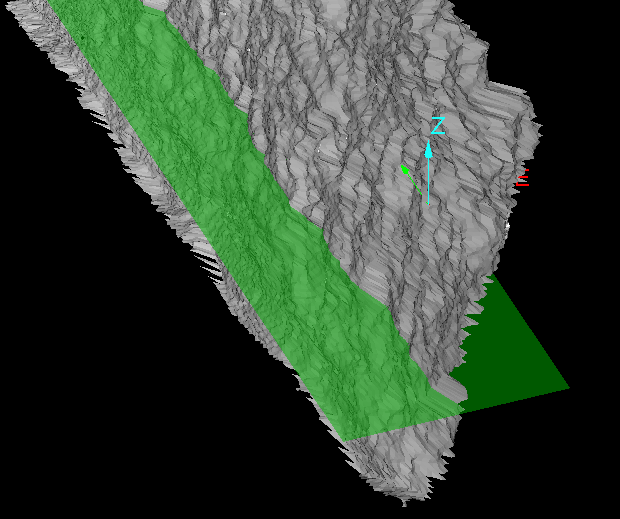

The Horizontal Plane tool enables you to create a plane to represent a water level, or as a reference for design bench RL and to assist in volume calculation. A horizontal plane can also help with positioning objects such as points, lines, circles, polygons and rectangles.

Note:  If you are drawing objects and there are multiple horizontal planes in view, points picked for creating objects will be placed on the horizontal plane in the foreground of the view, regardless of which plane is actually selected. Depending on the object being drawn, points may be projected to the action plane.

1. On the Create tab, in the Create group, click Horizontal Plane.

   The tool opens in the status bar.



2. On the status bar, enter the plane's elevation in the Location field, or click a point in the view window.

   Tip:  Use the snap modes if you’re placing the plane by clicking on a specific point.

The plane is created perpendicularly to the Z axis and saved in the cad container.
