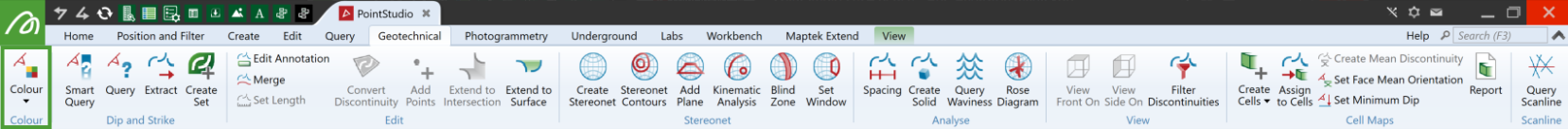

The geotechnical Colour group enables you to colour discontinuities for easier analysis.

Colour by Dip and Strike

Colour facet networks based on the dip or strike values of the individual facets.

Random Colour by Container (Ctrl+Alt+2)

Automatically apply random colours to selected objects, according to the containers in which they are stored.

Colour by Object Tag (Ctrl+Alt+5)

Colours discontinuity objects based on values of particular tags.

Colour by Dip and Strike

The Colour by Dip and Strike tool colours facet networks based on the dip or strike values of the individual facets. This helps to highlight discontinuities and planar areas and makes it easy to see fractures.

This tool is a preliminary way of marking exposed discontinuities. The resulting information can be used for further analysis using the geotechnical tools.

Note:  For accurate colouring of dip and strike, use only spherical, scan, or fusion surfaces. Topographic surfaces are not suitable for geotechnical analysis as they are created in a top-down manner that does not provide sufficient detail on rock slopes.

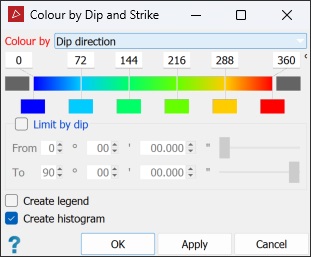

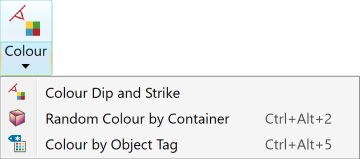

  1. On the Geotechnical tab, in the Colour group, click Colour Dip and Strike from the Colour drop-down.

  2. Set Colour by from the drop-down menu to Dip, Strike or Dip direction.

  3. Adjust the colour scale as required. See Modifying a colour scale for detailed instructions.

  4. Select Limit by dip to restrict colouring to a particular set. This highlights which fractures are part of the same set.

  5. Select Create legend to make a legend indicating the colour scale. Double-click on the legend in the project explorer to view it.

  6. Select Create histogram to make a graph displaying the distribution of data in front of and behind the surface. The chart will be placed in a secondary container called colour by distance from objects legend. Double-click on the container to view the chart.

  7. Click OK or Apply.

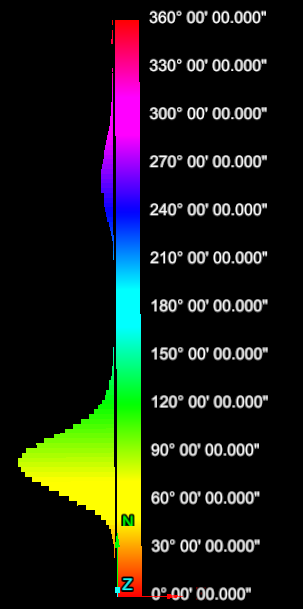

The histogram (left) shows the distribution of dip and strike values.

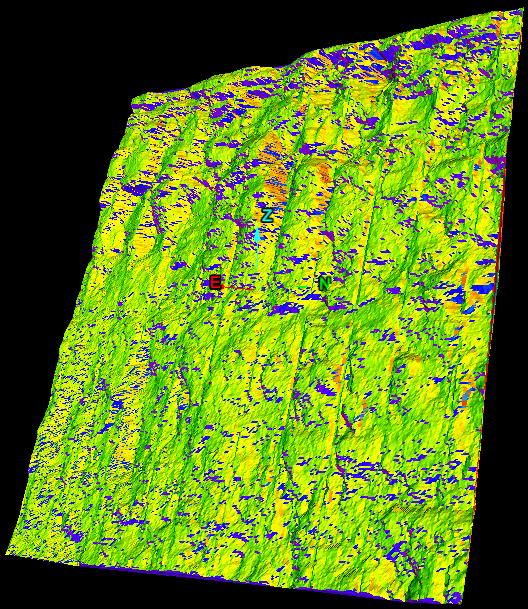

The above image displays the dips and strikes coloured according to their angle trends, corresponding to the histogram.

Random Colour by Container

The Random Colour by Container tool (Ctrl+Alt+2) automatically applies random colours to selected objects, according to the containers in which they are stored.

Select the objects to colour then click Random Colour by Container from the Colour drop-down. PointStudio automatically applies colours.

Note:  This tool also resides on the Home ribbon, in the Colour Scheme drop-down.

Colour by Object Tag

The Colour by Object Tag tool (Ctrl+Alt+5) colours discontinuity objects based on values of particular tags.

Proceed as follows:

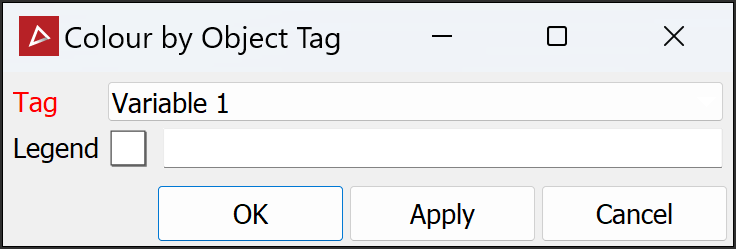

  1. Select Colour by Object Tag from the Colour drop-down.

  2. Drag a legend with the colour scheme to be used into the Legend field.

  3. Select the objects to be coloured.

  4. Select the appropriate tag from the Tag drop-down.

  5. Click OK or Apply.
