Project Explorer

Source file: project-explorer.htm

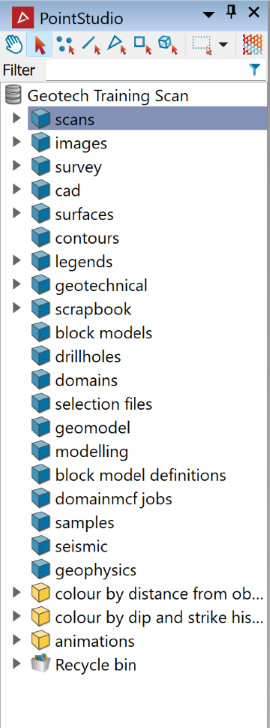

The project explorer displays a hierarchical view of objects in a project, stored in containers, and also hosts the selection toolbar (see Selection Toolbar).

Note:  Objects and containers appear in the project explorer in the order in which they are created. You can arrange container contents alphabetically by selecting Sort from the project explorer context menu. See Context Menus.

By default, the project explorer appears as a panel docked on the left-hand side of the user interface.

If the project explorer takes up too much viewing area, you can do any of the following:

  • Resize the project explorer in situ by dragging the boundary with the view window.

  • Undock and reposition the project explorer by dragging it by the title bar away from the Workbench window.

  • Set the project explorer to auto-hide when not in use by clicking (Auto Hide). Click again to restore.

Objects

All data in PointStudio are represented by objects, which can be either spatial or non-spatial. Spatial objects can be made up of points An object in a single location. The fundamental primitive from which all other spatial objects are formed., lines A sequence of line segments joined end-on-end., facets A primitive consisting of a triangle defined by three points or edges. Facets are the basic building blocks of triangulated surfaces., and cells A primitive consisting of a quadrilateral defined by four points., and can be moved between containers, into view windows, between view windows, and into panels. Some examples of non-spatial objects are legends, animations, and images.

When you hover the mouse over an individual spatial object in the project explorer, PointStudio will display a thumbnail of that object and its attributes if present.

An icon next to an object name indicates the object type. The following table lists the most common object types you will see in PointStudio:

Icon Object
Scans A point cloud with spherical coordinates relativew to the scanner location. with photographic images
Scans without photographic images
Drive scans A scan collected by a mobile scanner using the Maptek Drive system. with photographic images
Drive scans without photographic images
Surfaces A collection of joined facets used to represent a 3D object. with photographic images
Surfaces without photographic images
Sparse point clouds A point cloud with lower point density than that from which it is derived.
Point sets A collection of points saved as a single object.
Lines A sequence of line segments joined end-on-end.
Polygons A closed shape, including rectangles and circles, formed from by joining the ends of a line.
Edge networks An arbitrary collection of edges, which may include lines and polygons.
Rock bolts
3D Text A text label aligned to the action plane that follows the zoom or rotation of the view.
2D Text A plain text label that maintains its on-screen size and orientation regardless of the zoom or rotation of the view.
Markers A sign or other shape with a text label used to label an object or location. and scale bars A visual guide to the dimensions of objects in a view.
Discontinuities Defects or faults within rock bodies that can destabilise the structure.
Stereonet A 2D representation of dip and strike of discontinuities. planes and poles
Kinematic analysis Analysis of geological structures for potential failure.
Blind zone The region of trend and plunge of discontinuity poles that are perpendicular to those of drillholes used to take samples.
Set windows A window around an area of interest in a stereonet.
Stereonet contours Regions on a stereonet that show density distributions of discontinuities
Blocks A cuboid defined by a centroid and a size in each dimension.
Numeric legends
Text legends
Animations

Containers

A container is a storage location for objects. PointStudio uses three kinds of container, as follows:

  • Standard containers are created with each new project by default. These are displayed with a blue container icon .

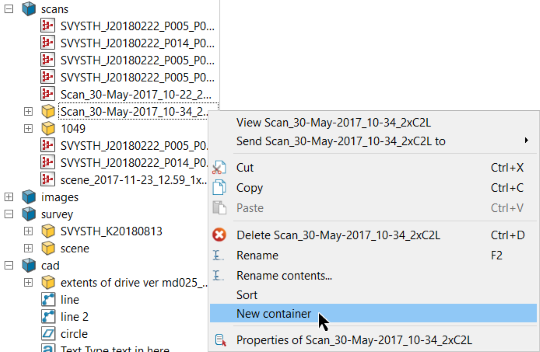

  • Custom containers can be created by right-clicking on the project or a container and selecting New container from the context menu. These will be displayed with a yellow container icon . Rename custom containers appropriately when you create them.

    Tip:   Sort scans and other objects as you go into sub-containers named for their related scan stations for easy future reference.

    Tip

    • If you delete a standard container, only its contents will be deleted. The container will remain.

    • If you delete a custom container, the container and its contents will be deleted.

  • Special containers are identified by different icons and have special properties, such as being linked to other objects.

    The following special containers may be used:

    Icon Container
    Stereonet
    Conformance scene
    Discontinuity set
    Cell or cell run

Note:  Deleted objects and containers are placed in the Recycle bin. Emptying the recycle bin will delete its contents permanently.

Tip

Many tool panels allow you to choose a destination container for the objects to be stored. You can choose any of the following actions:

  • Leave the destination field as is.

  • Drag a container from the project explorer into the destination field.

  • Enter the container's path into the destination field.

  • Click the button to navigate up one container level.

Object Filter

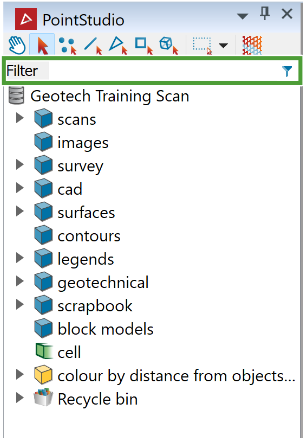

The project explorer includes a filter feature to enable you to find objects in the project according to criteria that you specify.

Expand each heading below for more detail.

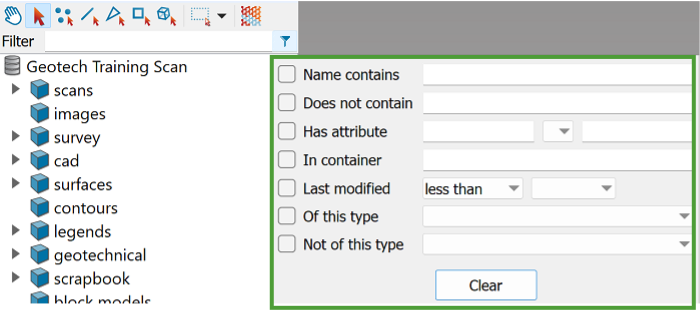

The object filter also includes an advanced search panel for building complex filters more easily.

  • To access the search panel, click the (Show filter options) button to the right of the Filter text box.

Note:  Any criteria in the filter text box will also appear in the panel. However, if the cursor is inside a bracketed region of the filter text box when the panel is opened, only the text within brackets will be read into the panel.

In the panel, enter any relevant search criteria from the available options:

  • Name contains: Any required part of an object name. This is the same as the Filter field.

  • Does not contain: Any part of an object name to exclude.

  • Has attribute: Enter an attribute name in the left field. You may also include a search value in the right field and whether to search for objects with attribute values less than, greater than, or equal to the search value.

  • In container: A container in which to search for objects

  • Last modified: Search for objects last modified before or after a given date.

  • Of this type: Select an object type from the drop-down list.

  • Not of this type: Select an object type to exclude from the search from the drop-down list.

Note:  As with the simple search, as soon as any criterion is provided, the project explorer’s background turns green, and valid search candidates and their containers will be darker than the rest. The filter criteria will also appear as a string in the text box.

If you need to reset the criteria, click Clear.

  • Click anywhere away from the filter panel to hide it. The filter criteria will be retained and the filter applied.

Tip

  • It is not necessary to complete all fields. You can use as many or as few search criteria as you need.

  • It is not necessary to select the checkboxes. These will be selected automatically when you run the search. You can re-open the filter panel and uncheck these to broaden the search without deleting the criteria.

You can enter search criteria in the Filter field, ranging from part of an object name to complex expressions (see Filter expressions, below).

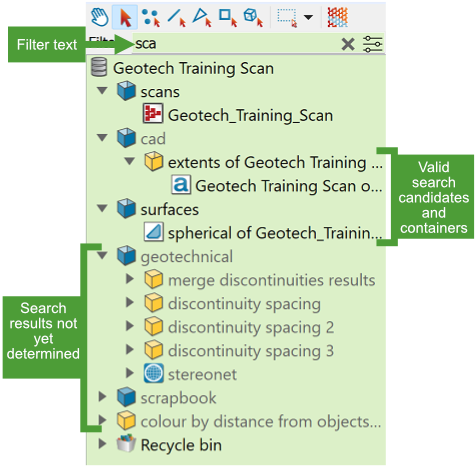

  • To perform a simple search by name, click in the Filter field and start typing any part of an object’s name. As soon as you start typing, the project explorer’s background will turn green to indicate that a filter is being used, and names of valid search candidates and their containers will appear darker than the rest.

Note

  • While a filter is active, if you click on a container’s expand arrow , and that container does not contain either a sub-container or a valid search candidate, it will be hidden from view.

  • When you clear the filter, hidden containers will be restored to view.

  • Filters are not applied to the recycle bin.

You can also create a new filter by typing an expression in the filter field.

Filter expressions must follow a specific syntax, as described below.

An expression consists of tokens separated by spaces, opening brackets, and closing brackets. Each token may be a filter condition or logical operator. Expressions are then interpreted as follows:

  • ( indicates the start of an expression.

  • ) indicates the end of an expression.

    Note:   Brackets must exist in pairs in a filter string. Neither bracket can stand alone.

  • - inverts the operation of an expression or condition.

  • AND between conditions means both conditions must be met to return a match.

    Note:  If no previous node exists, the AND is ignored.

  • OR between conditions means either may be met to return a match.

    Note:  If no previous node exists, the OR is ignored.

  • created or changed at the start of a condition filters by object creation date or modification date. To be a valid filter, it must be followed by either < or > and then either a date (in YYYY-MM-DD or DD-MM-YYYY format) or a duration (a number followed by s, m, h, d, w, mon, or y). This filter will then find objects with:

    • creation or modification dates before or after the specified date

      Or

    • elapsed time since creation or modification that is less or greater than the specified duration.

  • has: at the start of a condition (or the translation to the primary language) is an object attribute filter. The string after the colon is applied, as follows:

    • If it contains =, the object must have an attribute whose name matches the text before the = and whose value equals the text after the =.

    • If it contains !=, the object must have an attribute whose name matches the text before the = and whose value does not equal the text after the =.

    • If it contains <, <=, >, or >=, the object must have an attribute whose name matches the text before the operator and whose value is less than, less than or equal to, greater than, or greater than or equal to the text after =.

      Note:  Attribute names in these expressions are not case sensitive.

  • in: at the start of a condition (or the translation to the primary language) is a container filter. An object must have a parent whose name exactly matches the text after the colon.

  • is: at the start of a condition (or the translation to the primary language) is a type filter. The filter searches for objects of the specified type. Valid types are:

    annotation

    marker

    string

    blockmodel

    plane

    surface

    drillhole

    points

    tangent

    grid

    pointset

    tangentplane

    line

    polygon

    text

    lines

    ribbon

    scan

    triangulation


Example

  • in:cad AND created<1w will search for data in the cad container that was created in the last week.

  • is:surface AND has:filtered will search for all surface objects that have an attribute called filtered.

Note

  • Any text in a filter string that has spaces must be enclosed in quotes.

  • Tokens may be entered in either the current primary language or in English. For example, if the primary language is French, you can enter either is: or est:.

  • All other tokens are considered to match part of the item's primary name (case insensitive).

  • If the filter expression is not valid, the filter field background turns red. The filter field tooltip will provide the reason that the expression is invalid.
