Exporting Charts
Export chart images as PNG, CSV, or Excel files.
Click for tutorial: Chart Viewing and Exporting
You can export chart information using two methods:
Method One
On the File tab, click on the Export to display the following options.
Method Two
On the Export tab, select the format you want to export.

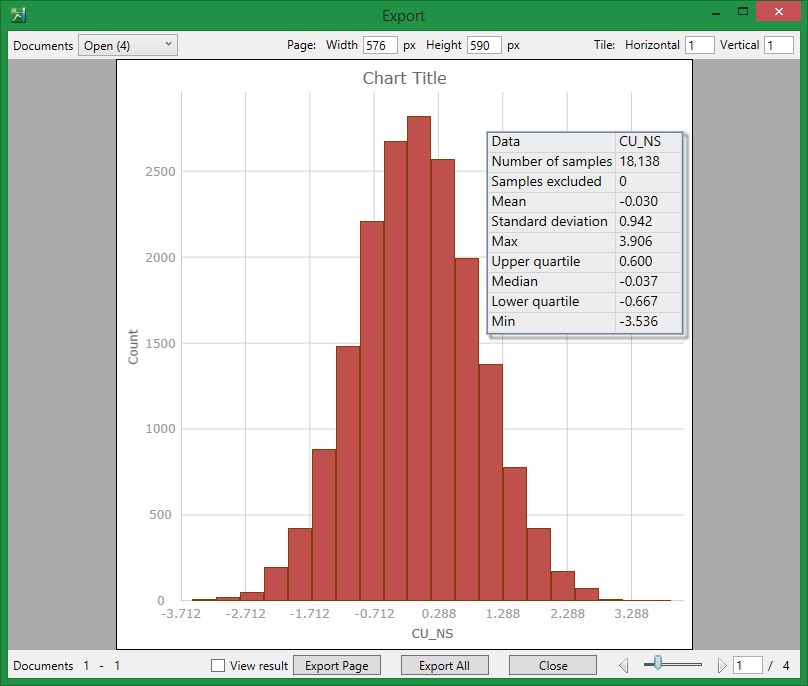

Setting display parameters
Documents
Select from three options:
- Export the single chart that was highlighted when the Export icon was clicked.
- Export all charts that are currently open.
- Export all charts whether they are opened for viewing or not.
Exporting a PNG file results in an image file of the chart.
Exporting a CSV file results in the data making up the chart being exported into a spreadsheet.
Exporting an Excel file results in both the data used to make up the chart, and the chart itself.
Page Width / Height
Adjust the size of each chart tile.
Tile Horizontal / Vertical
Determine the arrangement of tiles per page. Note that there is one chart per tile.
Navigation Arrows
Use the arrows or the slider to advance back and forth through the chart tiles.
