Regions - Triangulations

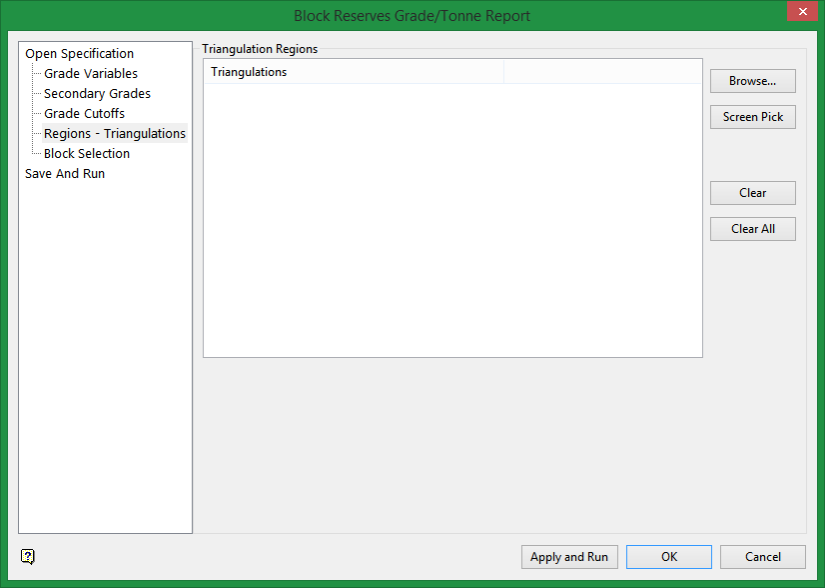

Use this section to include triangulations as regions in the calculations.
The path names will be saved using the preferences specified through the Miscellaneous section of the Settings > Preferences option.
A maximum of 2,215 triangulations may be saved at once through this interface.
A single specification file (.res_spec) can contain up to 5,000 triangulations.
Managing Triangulation Regions
Triangulations can either be selected from the screen, or through browsing your local data directories.
To remove a triangulation, select the triangulation from the list and click the Clear option.
To remove a group of triangulations, use the left mouse option in combination with the [Shift] key to highlight the triangulations (this is for triangulations that are adjacent in the list, for non-adjacent triangulations use the [CTRL] key and the left mouse option) and select Clear.
To remove all of the triangulations, select the Clear All option.
Note: Regions defined through this section of the interface will cause the bounding triangulation, which is nominated through the Block Selection section, to be ignored. Undesirable figures may be produced if your regions extrude outside the block selection solid. We recommend that you reblock the model to the block selection solid, flag the blocks inside with a value and then use this value as the block selection criteria.
