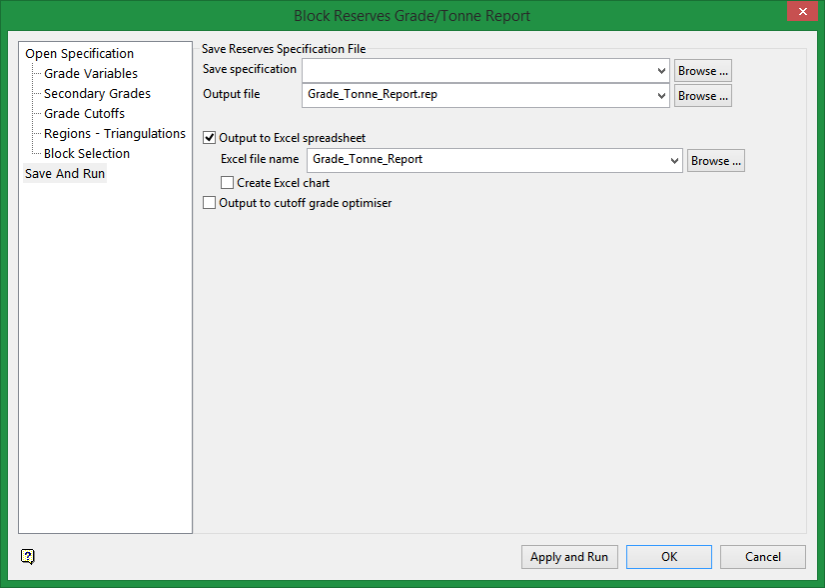

Save And Run
Save specifications into
The name of the currently open specification file, which was chosen through the Open Specification section, will be displayed. The drop-down list contains all.res_spec files found in your current working directory. Click Browse to select a file from another location. If you select an existing file, then the values in the chosen file will be overwritten with the new specifications.
To create a new file, enter the file name and file extension. By default, the resulting file will be stored in the current working directory. Use the Browse option to select a different file location.
Output file
Enter the name of the file that will be used to store the resulting report (.rep). The default file is 'Grade_Tonne_Report.rep'.
The drop-down list contains all.rep files found within your current working directory.
Click Browse to select a file from another location.
To create a new file, enter the file name and file extension. By default, the resulting file will be stored in the current working directory. Use the Browse option to select a different file location.
Tip: Leave this field blank if you do not want to save the report. A report file can still be created through using the Save button (displayed in the Report Window).
Output to Excel spreadsheet
Select this check box to send the resulting report to an Excel spreadsheet. You will need to select the Excel spreadsheet that will be used to store the resulting report (the default is 'Grade_Tonne_Report.xls'). The available drop-down list contains all.xls and.xlsx (Excel 2007) files found in your current working directory. Click Browse to select a file from another location.
To create a new file, enter the file name and file extension. By default, the resulting file will be stored in the current working directory. Use the Browse option to select a different file location.
Create Excel Chart
Select this check box to create an Excel chart from the resulting data. The sheet named Total 0 shows the totals, and Total n (n=1,2,3,...) shows the totals for different classifications values.
Output to Cutoff Grade Optimiser
Select this check box to output the report information to the C.O.G. format. This format is used by the C.O.G. Optimiser Editor option (under the Block > Cut-Off Grade Optimiser submenu)
Click OK to save the specifications. Select the Apply and Run option to save the specifications, as well as generate the report and all applicable output files.
