Directional Variography

Displaying the Variogram

When you need to display a directional variogram created using the Directional Variography interface you must use the button of this panel.  W hen you need display a variogram created from the Block > Variography > Create Variogram option menu, you must use the Block > Variography > Display option menu.

Directional Variography file

Specify the name of the Directional Variography Results file that contains the specifications that you want to use to perform the variogram calculations. Multiple parameter sets can be stored in a single parameters file, each one having a different identifier.

Directional Variography identifier

Specify the name of an existing variography parameters identifier. The drop-down list contains all identifiers stored in the nominated parameters file.

New Directional Variography identifier

Enter the name of the parameters identifier that you want to create.

Delete

Select this option to delete the selected parameters identifier from the nominated Directional Variography Results file. Once this option has been selected, the settings for the chosen identifier are permanently removed.

Save

Select this option to save the parameters. This option can also be used to copy a particular definition and save the settings under a different identifier name.

To copy an existing identifier, select an identifier from the Directional Variography identifier drop-down list. Once chosen, enter a new identifier name through the New Directional Variography identifier field before clicking the Save option.

Single Variogram (Multiple directions)/Multiple Variograms or variables

Select whether to generate a Single Variogram in multiple direction or Multiple Variograms. If you choose Multiple Variograms. The menu options available on the tree will change based on your selection.

Displaying the Variogram

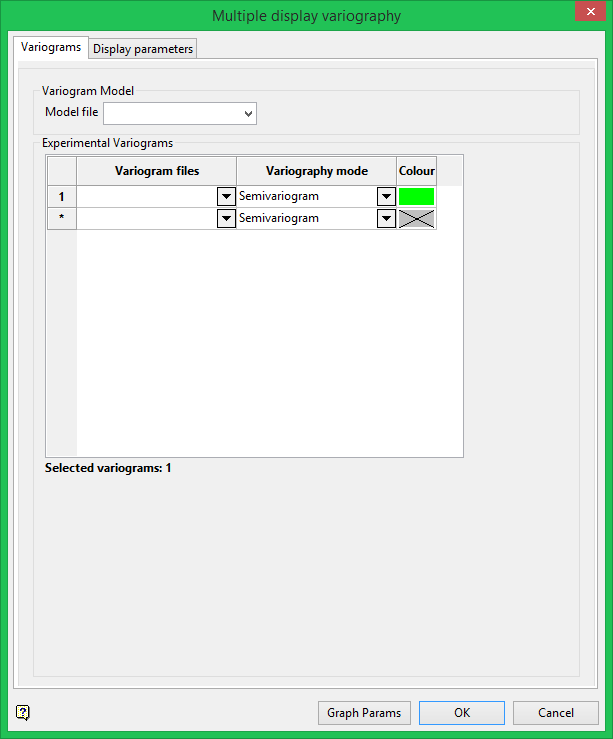

Variograms Tab

Variogram Model

Model file

Use the drop-down list to select the model file.

Experimental Variograms

Variogram files

Use the drop-down list to select the variogram file.

Mode

Note:  The list of modes available for use depends on the type of variogram you are modelling. Depending on what type of variogram you are modelling, some of these modes might not be available.

This is the standard semi variogram.

This is like the standard semi variogram, but divided by the mean of the data values.

This is like the standard semi variogram, but each difference is divided by the mean of the sample values.

sqrt(Semivariogram) / Madogram

Transform data as and compute the semivariogram

where:

Colour

Click on the colour tab to display the colour palette.

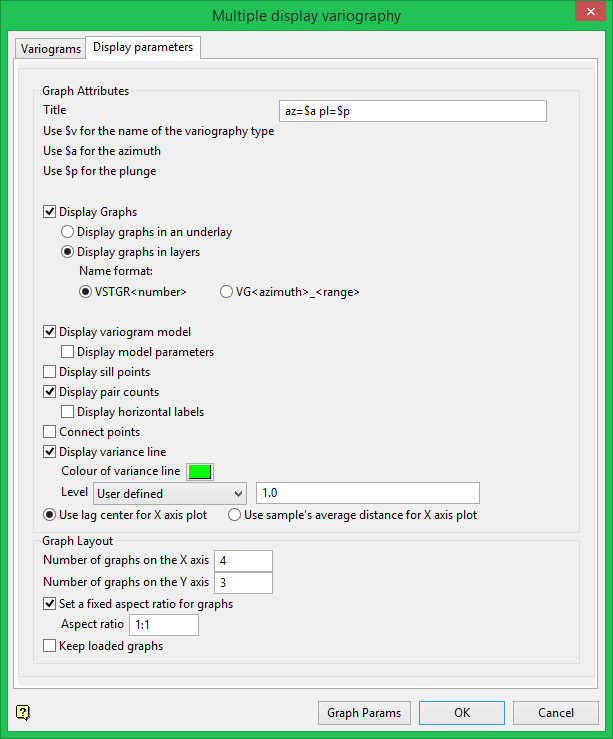

Display Parameters Tab

Graph Attributes

Title

Enter the text string which appears at the top of each graph. You can use $v in the title which is replaced by the variography type (for example, GENERAL); $p which is replaced by the plunge angle of the particular direction or $a which is replaced by the azimuth angle of the particular direction.

Enter the text string which appears at the top of each graph. You can use $p in the title which is replaced by the plunge angle of the particular direction or $a which is replaced by the azimuth angle of the particular direction.

Variography mode

Select, from the drop-down list, the type of variography to display.

Display graphs

Select this check box to display the variograms. They are stored in the .vrs file created through the Create option.

Select the Display graphs in an underlay option if you want to display the graphs as an underlay. Select the Display graphs in layers option to display the graphs as layers. You will need to specify the naming format for the resulting layers. This can be VSTGR<number> where the number increases with each raph, that is, VSTGR1, VSTGR2, etc or VG<azimuth>_<plunge>.

Display variogram model

Select this check box to display the variogram model function on the graph. The model function is stored in a .vrg file (created through the Auto Fit or Edit options). Check the Display model parameters check box to display the parameters for the variogram model.

Display sill points

Select this check box to display small circles for each sill structure. The circles are placed at the sill ranges for the value of the model function. These circles can be used in the Edit option to move sill points. You can move these sill points to change the range or the sill differential for a structure.

Display pair counts

Select this check box to display the number of pairs next to each point on the graph. Check the Display horizontal labels check box to print the pair counts horizontally instead of the vertically.

Connect points

Select this check box to connect the points in the experimental variogram.

Display variance line

Select this check box to display a horizontal line that represents the variance of the samples used to calculate the variogram. Usually, the sill of the variogram should peak at the variance. You will need to select a colour for the variance line. The colour is chosen from the current colour table.

Number of graphs on the X/Y axis

Specify the number of graphs to display in the X and Y directions.

For example, if you enter '4' as the number in the X direction, and '3' as the number in the Y direction, then 12 graphs will fit on the screen.

Figure 1: Sub Windows

Use the Zoom button on the Graphics toolbar to zoom in on a particular graph. You can switch between the Primary Window and the Graph Window by using the key combination Alt + Tab or by using the Window > Window option or by selecting View > Windows > Select option.

Continue displaying previous graphs

Select this check box to keep the display of the current graphs.

Select the Graph Params option to change the default graph parameters, for example, the colour of the graph components and size of the text; the axis parameters, such as checks, grid lines and axis label; and advanced axis parameters, such as axis annotations.

Once selected, the General Parameters panel displays.

Select colours for the graph elements, such as title text, axis annotations, axes labels, graphs (for example, bars of a histogram), graph points, grid lines and text. Colour for text refers to the display of textual information other than title, annotation and labels. The colours are selected from the current colour table.

Enter the size for the graph text (graph title, condition title, axes titles and annotation titles). The font type used is SCALED. The font size of textual information other than titles is 10 point. This can only be changed through using the options under the Design > Text Edit submenu.

Click OK.

Click Next.

The following panel is then displayed.

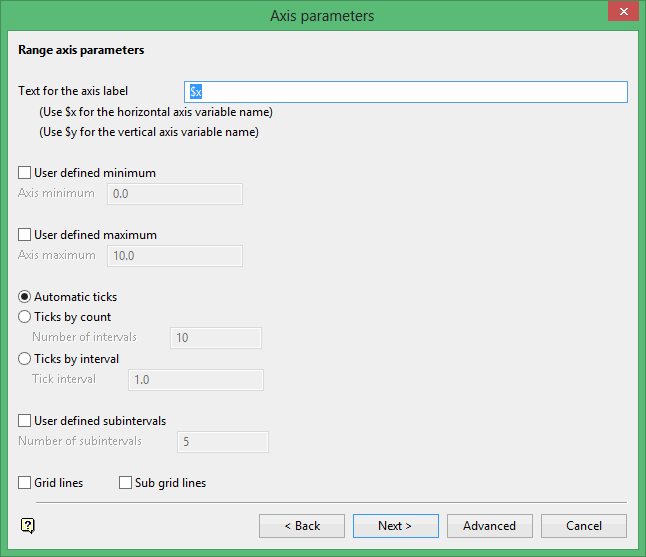

This panel displays twice, that is, once for the horizontal axis and once for the vertical axis.

Text for axis label

Enter the axis title (a maximum size of 40 alphanumeric characters). $x can be used for the horizontal axis variable name, while $y can be used for the vertical axis variable name.

User defined minimum/maximum

Check these check boxes to manually define the range of the axis. The minimum and maximum values can contain up to 6 decimal places. If these check boxes are not checked, then the system will find the minimum and maximum from the data.

Check marks can be controlled or generated automatically.

    • Automatic checks
      Select this option to let the system decide where to place the checks.
    • Checks by count
      Select this option to specify the number of checks. The interval between checks is the quotient of the horizontal range and this value.
      For example, if the horizontal range is 20, and the number of checks is 5, then checks will be placed at 4, 8, 12, 16 and 20.
    • Checks by interval
      Select this option to specify the distance between checks.
      For example, if the horizontal range is 20, and the check interval is 5, then the checks will be placed at 5, 10, 15 and 20.

User defined subintervals

Select this check box to use subintervals, which are smaller check marks placed between the major check marks. You will need to specify the distance between these smaller check marks.

For example: If the interval between major check marks is 10, and the interval between minor check marks is 2, then the minor check marks will be placed at 2, 4, 6 and 8.

Grid lines

Select this check box to replace check marks with grid lines.

Sub grid lines

Select this check box to replace subinterval check marks with sub grid lines.

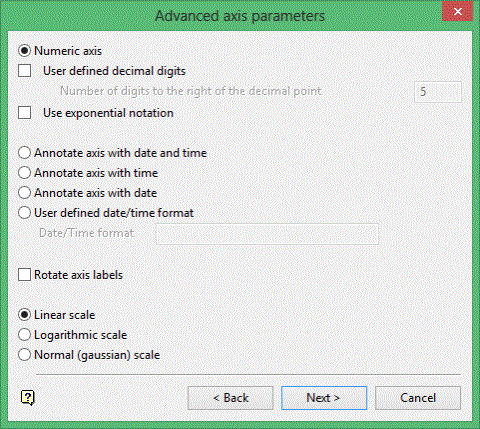

The Advanced option activates the following panel.

Numeric axis

Select this option if the horizontal axis contains numeric data.

The following options are available when using a numeric axis.

User defined decimal digits

Select this check box to specify the number of decimal places. You will need to enter the number of decimal places.

Use exponential notation

Select this check box to display all axis numbers in exponential notation, for example, 1e2 instead of 100.

Annotate axis with date and time

Select this option to annotate the axis with the date and time.

Annotate axis with time

Select this option to annotate the axis with the time.

Annotate axis with date

Select this option to annotate the axis with the date.

User defined date/time format

Select this option to annotate the axis with the defined date and time. You will need to enter the text that will be used to annotate the axis.

Rotate axis labels

Select this check box to rotate the axis annotation 90°. By default the axis annotations are displayed at an angle of 0°, that is, horizontal.

2 3 - Axis Labels Rotated

3 4 - No Rotation

The axis scale can be one of the following:

Linear scale

Select this option to use a linear scale - this is the most common scale. The intervals on a linear scale are a constant amount, for example, 5, 10, 15, 20 etc.

Logarithmic scale

Select this option to use a logarithmic scale - most useful when the range spans many orders of magnitude and you don't want to lose information at the smaller scales. Unlike linear scales (which are based on addition), Logarithmic scales are based on multiplication, that is, '1, 10, 100, 1000,...'. Zero or negative numbers can never be represented on a logarithmic scale.

Normal (Gaussian) scale

This scale should only be used for the log-normal probability plot. It displays a number between 0 and 1 in units of standard deviation in a Gaussian distribution.

Click Next to return to the Axis parameters panel. The Axis parameters panel is then redisplayed, allowing you to specify the parameters for the vertical axis. After completing this panel, select the Next option to return to the Display variography panel.

Click OK to display the graphs.

A selection box displays if there are more graphs than the specified number. From this box, select the method of scrolling.

By Page

Selecting Page Forward displays the next graph starting in the first position.

For example, if you have 13 graphs, but specified 12, then graph 13 displays in the first position of the next screen.

Figure 2: Page Forward

By Graph

Selecting Forward Graph display the next graph in the last position.

For example, if you have 13 graphs, but specified 12, then graph 13 displays in the 12thposition, graph 12 in 11thposition and so on.

Figure 3: Forward Graph

The following methods can be used to remove the graphs that were displayed as underlays:

  • Selecting the Remove Underlay or Remove All Underlays icons from the Standard toolbar.
  • Selecting the Remove option from either the main Block menu or the File > Underlays submenu.
