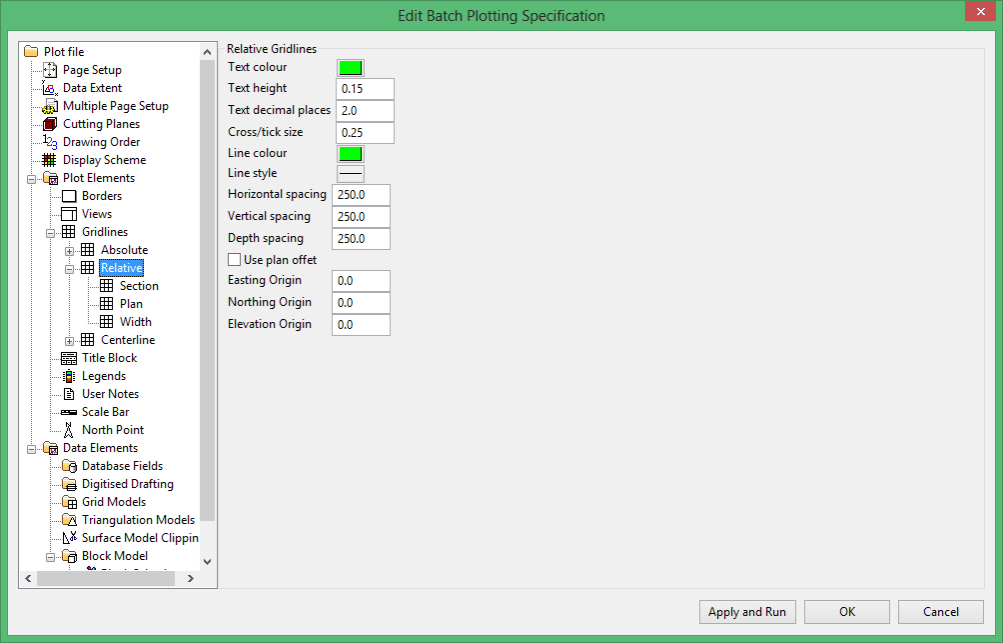

Relative

Relative gridlines are gridlines drawn from an origin specified by you. As apposed to Absolute gridlines, which are gridlines that represent real world Easting, Northing and Elevation coordinates.

Use this section to specify the graphical attributes and spacing (intervals) of the grids.

Text colour

Select the colour for the gridline annotations.

Text height

Enter the height, in plotter units, of the annotations.

Text decimal places

Enter the number of decimal places for the annotations.

Cross/check size

Enter the size, in plotter units, of the check marks on the gridlines.

Line colour

Select the colour for the gridlines.

Line Style

Select the line style for the gridlines.

Horizontal/Vertical/Depth spacing

Enter the distance, in world units, between the gridlines.

Easting/Northing/Elevation origin

Enter, in real world coordinates, the origin from which the relative gridlines will be drawn.
