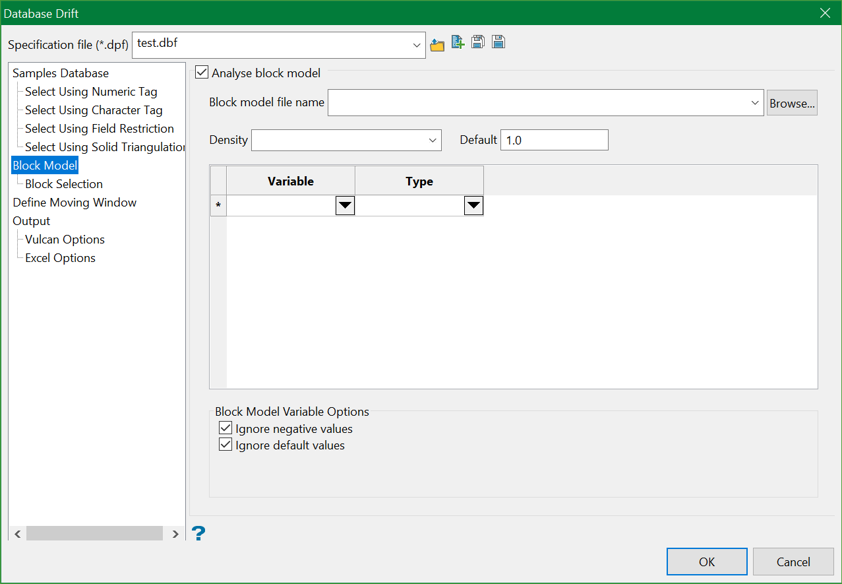

Database Drift Analyser - Block Model

Block model variable selection

Block model file name

Specify the name of the block model that will be used. By default, the name of the currently loaded block model displays.

The drop-down list contains all block models found in the current working directory. Click Browse to select a file from another location.

Density

Select the variable representing the density of the material from the drop-down list.

Default

Input the default density of the material.

Variable, Type

Select the variables to include in the calculation. Each variable can be specified as " wt by mass " or " wt by ". " wt by mass " should be used for variables containing values based on volume weighted average, while " wt by " should be used for variables that need to be treated as a weighted average based on mass.

Block model variable options

Ignore negative values

Select this check box to ignore variables with negative values.

Ignore default values

Select this check box to ignore variables that are equal to the specified default value.
