Display Stations
Use the Display Stations option to display the survey stations that are in a nominated survey station library.Instructions

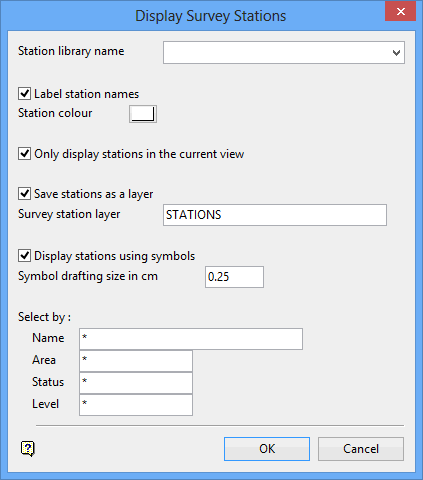

On the Iroad menu, point to Survey, and then click Display Stations to display the Display Survey Stations panel.
Station library name
Enter, or select from the drop-down list, the name of the survey station library.
Label station names
Select this check box to label the stations with their names.
Station colour
Select a colour for the stations.
Only display stations in current view
Select this check box to display only those stations that are visible in the current view.
Save stations as a layer
Select this check box to save the stations in a nominated layer.
To create a new layer, enter the layer name. The layer name:
may contain up to 40 characters
must begin with an alphanumeric character [0-9] or [a-z].
cannot include spaces
can include hyphens[ - ],, plus signs [ + ], underscores [ _ ], periods/dots [. ].
can include the special characters of ÁÂÃÀÇÉÊÍÓÔÕÚÜÑ that are used in the Spanish and Portuguese languages.
If this check box is not selected, the stations will be loaded as a single special object that cannot be saved.
Display stations using symbols
Select this check box to display the station using a symbol. The symbol drafting size is used to determine the size of the symbol on a plot. You will be prompted to select a symbol after this panel is completed.
Select by
The stations to be displayed can be selected by name, area, status and level. Wildcards (* multi character wildcard and % single character wildcard) are allowed.
Click OK.
If you selected to display the stations using a symbol, then you will need to select a symbol. Once selected, the stations are displayed with the symbol. If you are not using a symbol, then the stations are displayed as simple point markers.
