Node Edit

Edit the Z Value of a Grid Mesh Node

Use the Node Edit option to change the Z value of individual nodes of a currently loaded and visible grid mesh.

---

Instructions

On the Model menu, point to Grid Mesh Surfaces, and then click Node Edit.

Select the grid model that contains the nodes to be edited.

Select the node to edit. The node is marked with a + (cross).

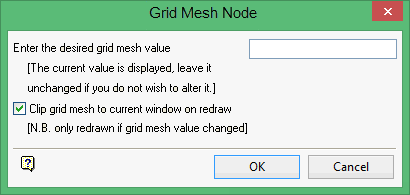

The following panel is then displayed.

Grid mesh value

Enter the grid mesh value. The current value displays as the default.

Clip grid mesh to current window on redraw
