Edit Label

Edit Block Label

The Edit Label option to edit the block labels on the current section.

---

Instructions

On the Dragline menu, point to Blocks, and then click Edit Label.

Select a block label.

If a Dragline specifications file (.rsp) was not opened prior to selecting this option, then the Open Dragline Specification panel displays first.

Open Dragline Specification panel

Spec file name

Enter, or select from the drop-down list, the <spec_file_id> part of the dragline specifications file name. The maximum size is 6 alphanumeric characters. Selecting a name from the drop-down list will open an existing specifications file. Entering a new name will create a new specifications file.

Click OK.

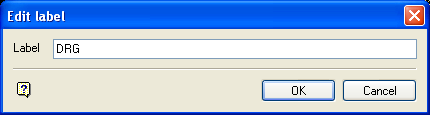

The following panel is then displayed.

Label

Enter the new block label (a maximum of 40 alphanumeric characters).

Click OK.

The block label is then updated and you will be prompted to select another block label. Cancel when finished editing block labels.
