Edit Rehandle

Edit Rehandled Fraction

The Edit Rehandle option to edit manually the rehandled fraction of a block on the current section. The rehandled fraction is the number used to determine how much of a block has been moved.

Note:   Under normal circumstances, it should not be necessary to use this option.

---

Instructions

On the Dragline menu, point to Blocks, and then click Edit Rehandle.

Select a block from the current section.

If a Dragline specifications file (.rsp) was not opened prior to selecting this option, then the Open Dragline Specification panel displays first.

Open Dragline Specification panel

Spec file name

Enter, or select from the drop-down list, the <spec_file_id> part of the dragline specifications file name. The maximum size is 6 alphanumeric characters. Selecting a name from the drop-down list will open an existing specifications file. Entering a new name will create a new specifications file.

Click OK.

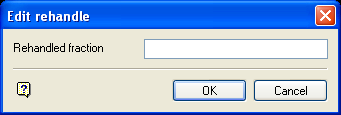

The following panel is then displayed.

Rehandled fraction

Enter the rehandled fraction of the selected block.

A rehandled fraction of -1 indicates that the block is insitu; 0 indicates that the block has been moved once; 1 indicates a block that has been moved twice (rehandled once). A rehandled fraction of -0.93 indicates that 93% of the block is prime, 7% has been moved and that there is no rehandle. A rehandled fraction of 0.07 indicates that 7% of the block has been rehandled, 93% of the block has been moved only once and that none of the block is prime.

In the case where rehandle was ignored during the movement of a block by a piece of equipment, the rehandled fraction remains unchanged.

Click OK.
