Plan Data

Use the Plan Data option to select objects to appear in plan view when exported to the DragNav mapfile. These objects can be assigned individual attributes, for example, layers, colours, line styles, etc. Objects assigned with specific layer attributes allows dragline operators to turn them on or off in DragNav.

Instructions

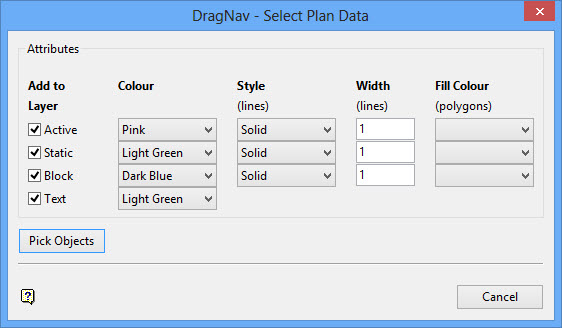

On the Dragline menu, point to DragNav, and then click Plan Data to display the DragNav - Select Plan Data panel.
