Edit Label

Edit Vertical Line Labels

The Edit Label option to edit the labels of the vertical lines created through the Create option.

The vertical lines must be visible prior to running this option. Refer to the View > Toggle Lines option for more information.

---

Instructions

On the Dragline menu, point to Lines, and then click Edit Label.

Select the line label that you want to edit.

If a Dragline specifications file (.rsp) was not opened prior to selecting this option, then the Open Dragline Specification panel displays first.

Open Dragline Specification panel

Spec file name

Enter, or select from the drop-down list, the <spec_file_id> part of the dragline specifications file name. The maximum size is 6 alphanumeric characters. Selecting a name from the drop-down list will open an existing specifications file. Entering a new name will create a new specifications file.

Click OK.

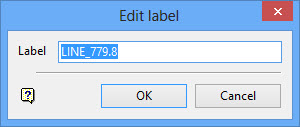

The following panel is then displayed.

Enter the new label (a maximum of 20 alphanumeric characters) and click OK.

The label is then updated and you will be prompted to select another label. Cancel when you have finished editing labels.
