Working
Name the Working Layer for Laying Out and Defining Your Section Planes
The Working option to allocate a working layer when designing the layout of your section planes. All section line objects designed using the Define option, will be created in this layer.
Note: Neither the Working nor the Define options are essential to the creation of dragline section arrows. The two options work together and may provide a useful tool to aid you in the laying out of your section planes. For actually creating the dragline section arrows, refer to the Create option.
Instructions
On the Dragline menu, point to Sections, and then click Working to display the Layer panel.
If a Dragline specifications file (.rsp) was not opened prior to selecting this option, then the Open Dragline Specification panel displays first.
Open Dragline Specification panel
Spec file name
Enter, or select from the drop-down list, the <spec_file_id> part of the dragline specifications file name. The maximum size is 6 alphanumeric characters. Selecting a name from the drop-down list will open an existing specifications file. Entering a new name will create a new specifications file.
Click OK.

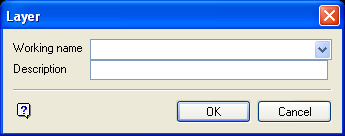

Layer panel
Working name
Enter, or select from the drop-down list, the name of the working layer. The maximum size of the layer name is 40 alphanumeric characters (spaces are not allowed).
Description
Enter a description to further describe the contents of this layer. The description can be up to 80 alphanumeric characters and may include spaces. If a description is not entered, then a default description will be used instead. If the chosen layer already has an assigned description, the description displays when the layer is selected. Existing layer descriptions can be overwritten.
Click OK.
The working layer is then opened and its name displayed in the Status toolbar. You are now ready to begin designing cross-section lines using the Define option.
