English Log Generation - Header Tables

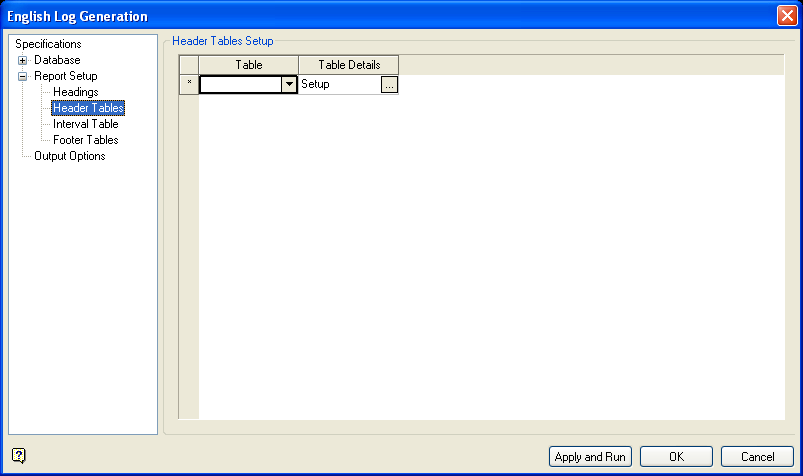

Header Tables Setup

This section allows you to configure the reporting of general header information, i.e. the drilling company, the easting and northing locations, or the total hole depth. Depending on the structure of the drilling database there may be more than one table selected. Within each selected table there are a number of inputs required.

Table

Select the table to be used.

Table Details

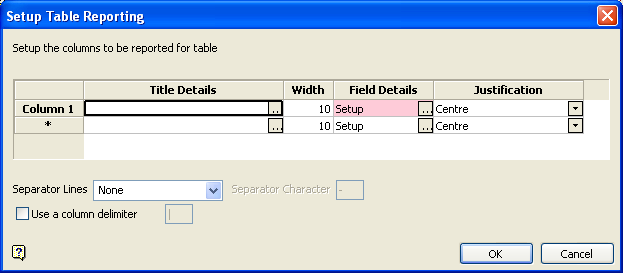

Select the button to configure the table reporting. Once selected, the Setup Table Reporting panel displays.
