Grade Control Database Setup

Boundary String Triangles

Use this function to link to an existing database.

Note:   : This option will not be enabled unless all of the Define Data Sources setup has been completed and is valid.

---

Instructions

On the Grade Control menu, point to Setup, then click Define Data Sources to display the following interface.

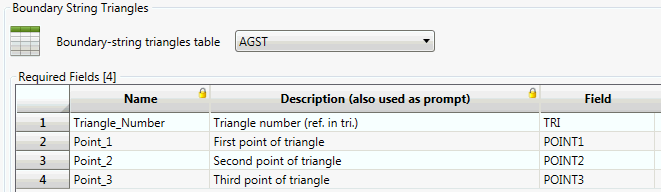

Boundary String Triangles

This tab allows for the setup of the required record name and its associated fields which define the Boundary String Triangles. All items are required. This forms an optional addition to the required Blast Boundary Strings points allowing for triangulations to be formed from those strings as required.
