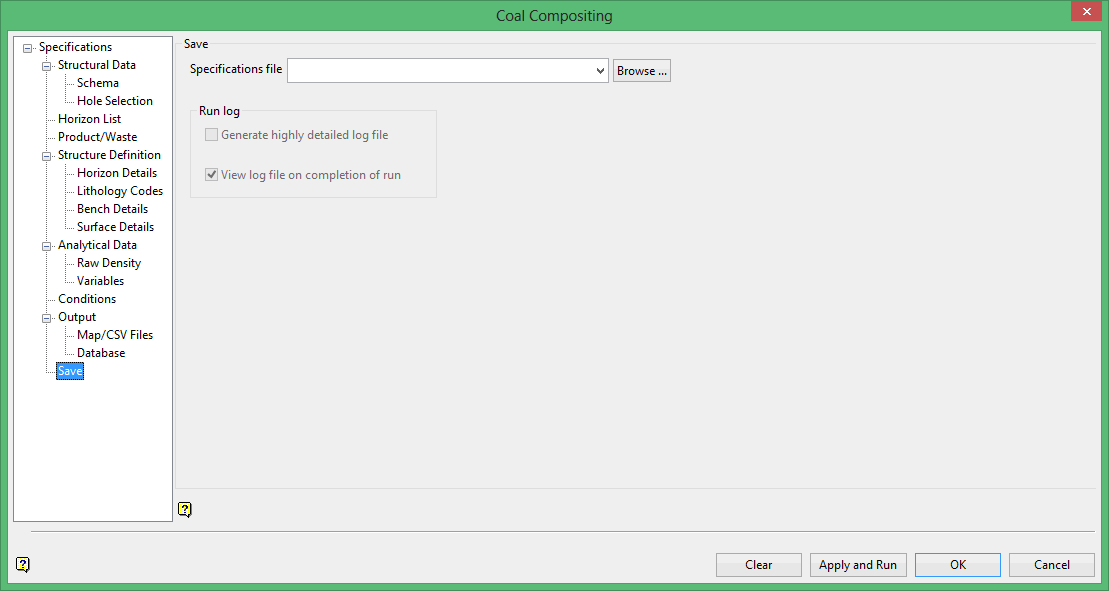

Save
Use Save to save any changes to the specification file and run the compositing.
Specifications file
The Coal Compositing specification file saves with a <.ccp > extension. Click Browse to save the specification file to a location outside the current work area.
Click Apply and Run to save the specification and create the composited data. After compositing runs, a log information file automatically opens so any errors may be addressed.
Click Yes on the Model Qualities dialog box to create grids from data generated during compositing. This automatically launches Grid Calc > Create Multiple Surfaces.
Run log
Generate highly detailed log file
Select this check box to create a log file detailing which intervals were composited in each drillhole.
View log on completion of run
Select this check box to open the generated log file automatically on completion.
