Vertex Z Edit

Edit the Z Value of a Triangle Node

Use the Vertex Z Edit option to view and modify the Z value of individual triangle nodes of a displayed triangulation.

---

Instructions

On the Model menu, point to Triangle Surface, and then click Vertex Z Edit.

Select the triangulation. The triangulation model will be selected automatically if there is only one loaded onscreen.

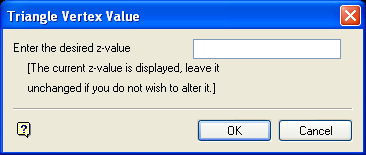

Select the vertex to edit. The following panel is then displayed.

Enter the desired z-value

Enter the Z value. The default Z value is the current Z value.

Click OK.

You can then select more vertices for editing. Cancel when you have finished editing.
