Interactive Creator

Use this option to create ore body solids from drill hole data. This can be useful for geologists to create block model and perform other calculations as well.
This is how the overall workflow looks like.

• Load drill hole database.
• Create polylines or polygons from drill hole interval.
• Use the interactive creator to create ore body solid.
• Create block model from the solid.
• Use Variography to calculate grade and estimate.

---

Instructions

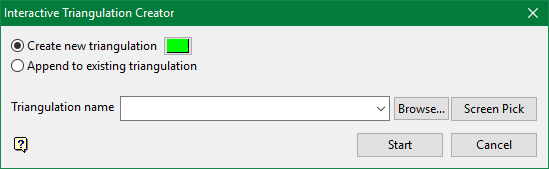

On the Model menu, point to Triangle Surface, and then click Interactive Creator to display the Interactive Triangulation Creator panel.

Create new triangulation
