Set Up
Set Horizon Parameters

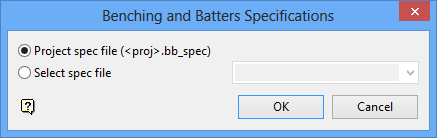

The Set Up option to set the limiting topography surface, and the sequence of horizons from the topography surface down. This information is stored in a Benching and Batters specification file (.bb_spec).
Instructions
- Select Open Pit menu
- Select Terrace Mining submenu
- Select Set Up option
The following panel displays.

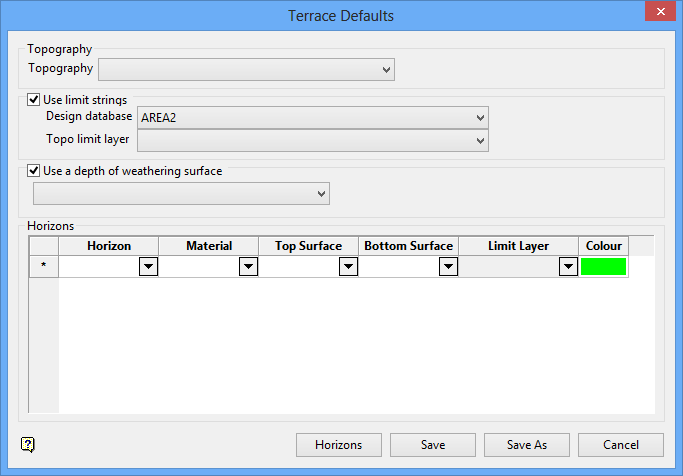

Terrace Mining Setup panel
The panel utilises grid controls to manage the grid information, i.e. right-click context menus, that allow you to perform options such as hiding columns, cutting, copying, and pasting cells, and inserting and deleting rows. Right-click in the grid area to display the context menu. Descriptions of the available options are listed below.
Grid Control Options
-
Use the Select Columns option to choose which grid columns to display in the panel, and optionally save the selection to a template for future use. Alternatively, select cells and click Hide Columns to hide the respective columns directly.
-
Select cells and use the Cut, Copy, and Paste options to duplicate or move cell entries.
-
Select a cell in a row of interest and use the various insert and delete row options to manage the records in the grid.
-
Click Clear Cells to clear the contents of a selection.
Topography
Select the topography surface that you want to use. The nominated surface can either be a grid or a triangulation. The drop-down list contains all supported grids and triangulations found in your current working directory.
Use limiting string
Select this check box if you have a string that limits or bounds the nominated topography. You will need to nominate the design database that contains the limiting layer followed by the layer that contains the limiting string.
Use a depth of weathering surface
Select this check box to use a depth of weathering surface. A depth of weathering surface refers to a surface that represents the boundary between weathered and unweathered material. The nominated surface can either be a grid or a triangulation. The drop-down list contains all supported grids and triangulations found in your current working directory.
Horizon
Select the horizon or seam to be reserved. The full name is
<proj><gfi>.<mv>g.
Top Surface
Select the upper surface of the horizon.
Bottom Surface
Select the lower surface of the horizon.
Limit Layer
Select the layer containing the previously created seam limits, lease boundaries or pit boundaries. The drop-down list will contain the names of all layers found in the nominated limiting design database. The Limit Layer column will be disabled, that is, unavailable, if the Use limit strings check box has not been checked.
Colour
Select the colour for the chosen horizons. The chosen colour, which is selected from the current colour table, will also be used to colour the strings projected to these surfaces.
