Back objects

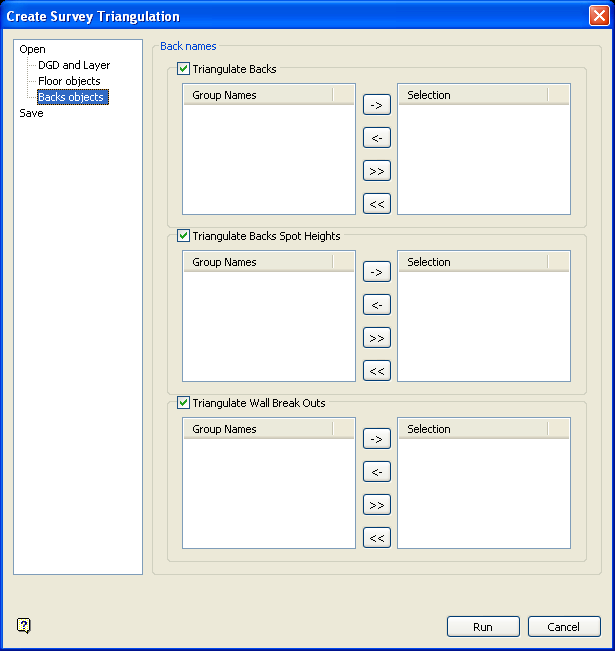

This section to select the objects from the survey data that you want to triangulate.

Back objects panel

Triangulate Back

Select this check box to create triangulations of the back boundary string.

Triangulate Back Spot Heights

Select this check box to create triangulations of the back spot heights boundary string.

Triangulate Wall Break Outs

Select this check box to create triangulations of the wall break outs boundary string.

Note
To reduce errors in the triangulation process, each wall line needs a different group name.

Use the button to move highlighted groups to the selection list on the right side. Pressing the button will move all groups displayed in the left-hand side to the right side. To remove groups from the selection list, highlight the desired entries and press the button. Use the button to remove all groups from the selection list.

Run

Use the Run button to create the triangulation. To display the triangulation, open the Triangulation folder in the Data tab and load the corresponding.00t file.

Once complete, go to the Save section to save your settings.

• Create Survey Triangulation interface
• • Load or create new specification file
  • DGD and Layer
  • Floor objects
  • Back objects
  • Save
