Load or create new specification file

Use this screen to load the.cst file containing the layers to be triangulated.

Before you begin, ensure string data unique Group attributes, as shown in the example below. Use Design > Attribute Edit > Group to apply group names. Group names can be alpha or numeric characters.

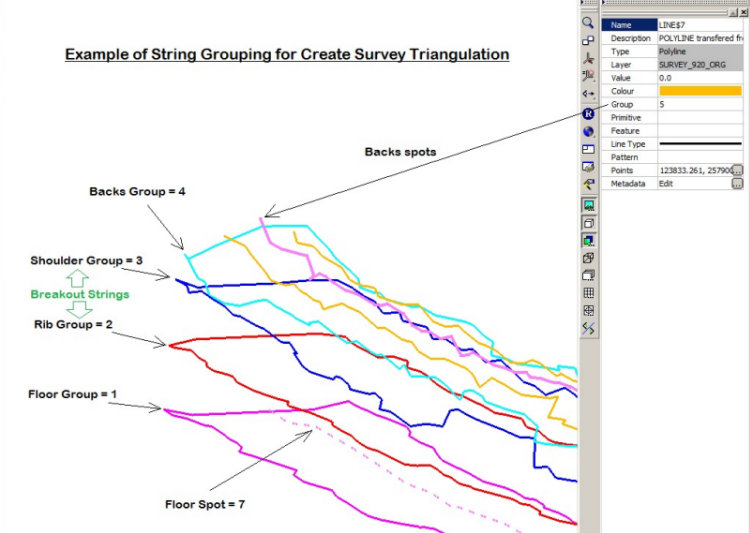

Group Name Assignment Example

Instructions

• Select Survey menu
• Select UG Survey submenu
• Select Create Survey Triangulation option

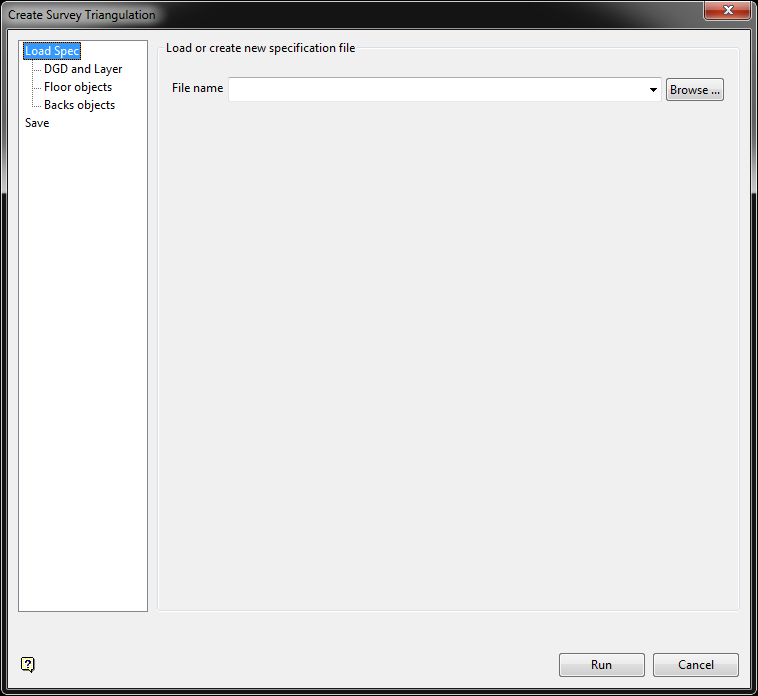

The following panel displays.

Load or create new specification file

Enter, or select from the drop-down list, the name of the specification file (.cst) containing the layers to be triangulated. The drop-down list contains all of the .cst files found in your current working directory. Click Browse to select a file from another location.

To create a new file, enter the file name and file extension.

Once complete, go to the DGD and Layer section to load the layers to be triangulated.
