Editing & Modelling a Cross Variogram

After an experimental cross variogram has been made, these parameters can be used to generate the model cross variogram.

---

Properties tabs

Data tab

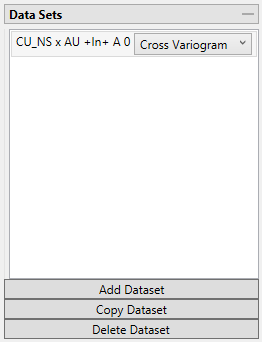

Data Sets

Add Dataset

Select the chart to which you wish to add data.  Then select the data group from the Data Explorer that you wish to add.  Last, click on the button.  The data will be added to the chart using the same parameters as the existing dataset already on the chart.

Copy Dataset

Select a dataset from the list to highlight it, then click the button to create a copy of the dataset on the chart.

Delete Dataset

Select a dataset from the list to highlight it, then click the button to delete the dataset from the list and the chart.

Variogram Parameters tab

Variogram Mode

Refresh Chart

To refresh the chart, click the icon in the upper right corner.

Mode

Note:  The list of modes available for use depends on the type of variogram you are modelling. Depending on what type of variogram you are modelling, some of these modes might not be available.

Use mean distance

Use the mean distance for the x coordinate of the variogram points.

Standardise sill

Select this check box if you want to standardise the variogram sill by dividing the results by the sample variance. This is useful when calculating a semivariogram because instead of reaching the sill at the sample variance it will reach it at 1.

Label pair count

Select this option to display the number of pairs used for each point on the graph.

Rotate pair count

This option displays when Label pair count is selected. Select this option to rotate the number labels of the pairs so that they are oriented 90 degrees upward.

Minimum pair count

Enter the lowest number of pairs that you want to be used to influence the variogram model.

Show sill

Select this option to show the sill.

Custom Sill

Select this option to enter your own value for the sill.

Tip:  A red border will warn you when an entry is not a number or has an incorrect format.

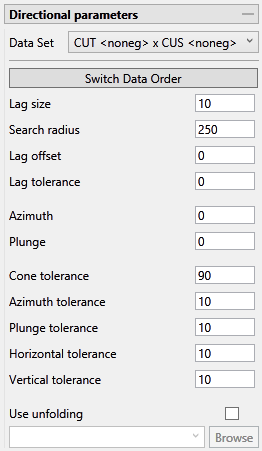

Lag size

Set a lag size that coincides with your data spacing.  If you have to err, do so on the side of too small.

Search radius

The search radius should correspond to approximately half of your data field.  Past the halfway point the search will over-extend the edge of the data.

Lag tolerance

Set the distance within which to use samples. If this is set to 0, then the tolerance is not used.

Azimuth

Enter the azimuth. This parameter controls the azimuth direction in which variography is evaluated.

Plunge

Enter the plunge. This parameter controls the plunge direction in which variography is evaluated.

Azimuth tolerance

Enter the limit on the angle between two samples as measured in the plane of the plunge of the variogram.

Plunge tolerance

Enter the limit on the angle between two samples as measured in a vertical plane in the direction of the azimuth.

Note:  A combination of cone, azimuth and plunge tolerances is used if the azimuth angle tolerance and plunge angle tolerance are set to less than the cone angle tolerance.

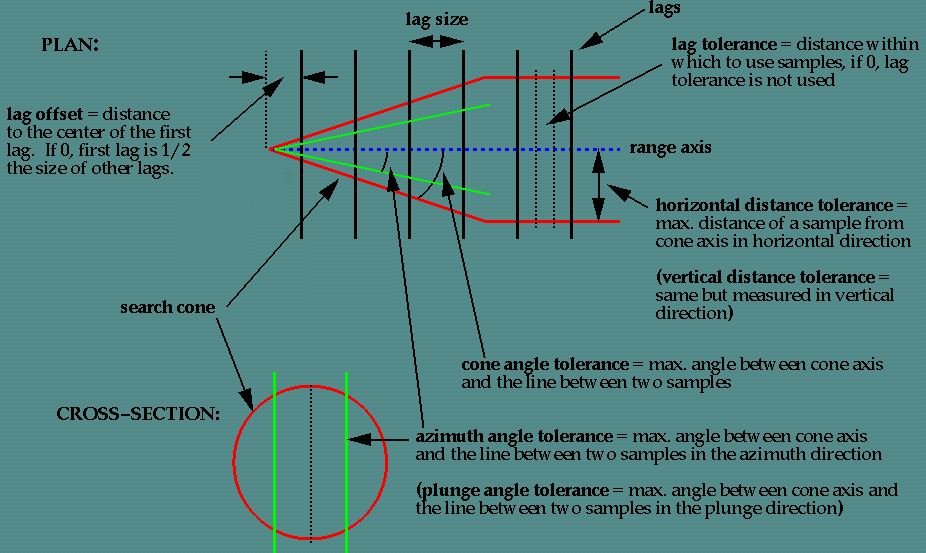

Figure 1: Cones of tolerance.

Horizontal tolerance

Enter the horizontal distance limit on sample pairs. Any acceptable sample must be within this horizontal distance of the centre of the variogram cone.

Tip:  Set this value to a typical spacing (or larger) between your data, for example, if your data is on a 100 × 100 × 10 grid, set a horizontal distance of 100 and a vertical tolerance of 10. If you receive too few sample pairs, try increasing the tolerances to capture more data otherwise artifacts such as "hole effects" may occur.

Vertical tolerance

Enter the vertical distance limit on sample pairs. Any acceptable sample must be within this vertical distance from the centre of the variogram cone. The vertical distance is measured from the plane of the plunge of the variogram cone.

Using too large a "cone" can result in excessive mixing of samples from different directions. This can cause the apparent anisotropy to appear smaller than the true anisotropy. Using too small a cone can result in rough variograms that are hard to interpret. The sample cone may be too small if the number of sample pairs for most lags is small compared to the number of sample points.

For an omnidirectional variogram, use 90 for the azimuth tolerance and 90 for the cone angle tolerance.

Note:  At a great enough distance, the horizontal distance tolerance and vertical distance tolerance will clip the sides of the search cone.

Use unfolding

The unfolding option is used in the case of deformed strata bound deposits. This can be applied to deposits where mineralisation is controlled by a structural surface that can be modelled. The specification file from a Grid Model is used.

View Cones in Vulcan

You can visualise the search ellipses by enabling the option to View Cones in Vulcan, or by clicking Display Cones from the Connectivity tab in the ribbon. The cones are interactive, therefore, any changes made in the variogram parameters will be automatically reflected in the cones seen in Vulcan.

Steps

1. Begin by clicking the button labelled Pick in Vulcan.

2. In the Envisage workspace, click where you want the origin of the cones to be displayed.

3. Use the slider to adjust the Translucency of the cones.

4. Set the colours for the cone by clicking on Colour 1 and Colour 2, then selecting a colour from the palette.

5. To remove a the cone from the screen, disable the View Cones in Vulcan checkbox.

Create Deferred Scattered

Each variogram point is the average of a collection of points that have a distance (h) from the origin point. Therefore, each variogram point can generate a correlation between the origin point and the others inside the indicated neighbourhood.

First, select a point from the variogram.

Next, click the Create Deferred Scatter button to create the chart.

Chart Settings tab

Data

Data Set

The current data set that is being display on the chart is listed, showing the azimuth and plunge angle.

Colours and Markers

Use the drop-down menus to select the colours and markers to customise the charts.

Axes

Gridlines

Select this option to display the gridlines at major intervals on the chart. You can elect to display gridlines for both axes or just one, depending on your needs.

Auto fit

By default, Vulcan Data Analyser will auto fit the axes based on the values calculated from the dataset.  However, you can customise the axes to highlight your particular study and needs.  This can be done in two ways:

Method One

1. Deselect Auto fit.

2. Set a Minimum and Maximum range.

3. Let Vulcan Data Analyser adjust the intervals automatically by leaving the Auto Interval option selected.

Method Two

1. Deselect Auto fit.

2. Set a Minimum and Maximum range.

3. Deselect Auto Interval, then enter an interval of your choice.

Axes Titles

By default, the axes are provided with the traditional titles of Gamma and Range. However, if you wish to change these you may do so by replacing the text in each of the textboxes.

Gridline Colour

Click the arrow to display the colour palette, then select a colour for the gridlines.

Clicking the Advanced button will bring up a dialog which will allow you to customise the colour to you exact specifications.

Annotations and Legend

Show Legend

By default, the legend is automatically displayed. If you do not want to see the legend simply uncheck the checkbox in the upper right corner.

Horizontal and Vertical Alignment

Position the chart legend by left-clicking on it with your mouse and dragging it to the desired location.  It is also possible to position the legends by typing in a number between 0 and 100 into the textbox.  If you do not want to see the legend simply uncheck the checkbox in the upper right corner.

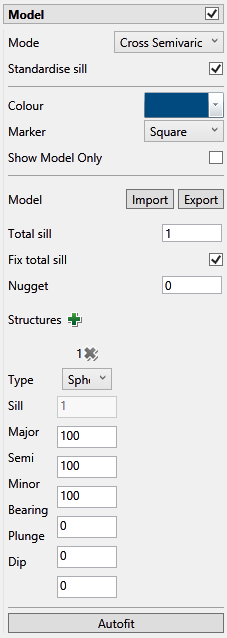

Model tab

Model

Variogram Mode

Mode

Note:  The list of modes available for use depends on the type of variogram you are modelling. Depending on what type of variogram you are modelling, some of these modes might not be available.

Standardize sill

This option is disabled. You cannot set a standardised sill in a cross variogram.

Colour and Marker

Use the drop-down menus to select the colours and markers to customise the charts.

Show Model Only

Select this option to show only the model and hide the experimental variogram data.

Model Import / Export

A model can be imported in or exported out.  The files are stored as <filename>.vrg.  The models that are exported out can be used in block model estimations.

Total Sill

Click the Fix total sill checkbox to enable this option. If you do not know the exact sill, enter a number that is close.  Start with a whole number or a number rounded to 0.5 and work from there.  The sill you choose will not affect the model calculations.  It will only affect how you are able to see it on the chart.

The total sill is equal to the nugget plus all the structures such that

Total Sill = Nugget + Structure 1 + Structure 2 +... + Structure n

Nugget

You can enter the nugget obtained from the down hole variogram or enter another nugget.  The default nugget is 0.

The nugget is the variance at an infinitely small separation distance.

Structures

Additional structures can be added by clicking the green icon.

Use the red icon to delete a structure.

Type

General	This option will be used most of the time.  Use this if the experimental variogram has a standard look.
Zonal Anisotropic	Use the Zonal option when the range of the experimental variogram is extremely long.  Typically, the variogram may never reach the sill. With this option, the search distance of at least one direction must be set.
Cyclic Anisotropic	User the Cyclic option when the experimental variogram looks like a sine wave as it approaches the sill.  Only two types of structures are available when this option is selected: Periodic and Hole Effect. With this option, the search distances for two of the three directions must be set to a maximum distance of 999999.
Isotropic	This option is similar to the General option.  However, all search distances will be the same for each direction.

Define the type of structure by choosing from the drop-down list.

In some instances, a variogram cannot be characterised by one of the model variograms described previously. However, a combination of models may adequately represent such behaviour. The final variogram structure is therefore termed a nested structure.  Spherical models are often nested, with each component model reflecting a particular scale of variability in the deposit. Modelling of nested structures is generally by trial-and-error.

Search Distances & Orientation

Enter the search distances into the Major, Semi-major and minor textboxes.  Then enter the orientations into the Bearing, Plunge and Dip.  You can see the affect altering the orientation of the search parameters will have on the model by adjusting the sliders.

Autofit

Click Autofit to display the Configure Autofit panel.

Limiting the region

To the left of the textboxes are small icon like those shown below.  Each icon has three states.  Click on an icon to change its state.  These icons allow you to control how tightly the values are locked during the iterations.

From top to bottom the three states are:

Freeze value - the value is not allowed to change.

Freeze region - the value is allowed to change only within 15%.

No Freeze - there is no limit.

Total sill

This is the sum of the nugget plus the each of the sills of the nested structures. With the range icon set to Unfreeze or In range, you can enter the desired sill. If you do not know the exact sill, enter a number that is close.  Start with a whole number or a number rounded to 0.5 and work from there.  The sill you choose will not affect the model calculations.  It will only affect how you are able to see it on the chart.

The total sill is equal to the nugget plus all the structures such that

Total Sill = Nugget + Structure 1 + Structure 2 +... + Structure n

Nugget

You can enter the nugget obtained from the down hole variogram or enter another nugget.  The default nugget is 0.

The nugget is the variance at an infinitely small separation distance.

Sill

This shows the sill for each structure.

Search Distances & Orientation

Enter the search distances into the Major, Semi-major and minor textboxes.  Then enter the orientations into the Bearing, Plunge and Dip.  You can see the affect altering the orientation of the search parameters will have on the model by adjusting the sliders.

Start autofit

Click this to begin fitting your model. A progress bar will show you the progress. You can also hover your mouse over the Stop Autofit button to see how many iterations have been calculated and the error between one iteration and the next. You do not need to wait until the autofit function completes. You can stop it at any time. The model will be drawn in real time on the chart and you will be able to see the changes as the autofit function calculates through the iterations.

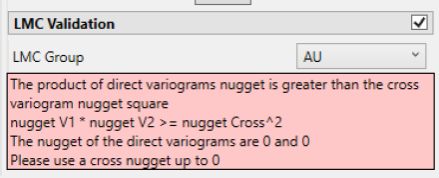

LMC Validation

LMC Validation (Linear Model of Correlation) is required to use cokriging in non collocated data.

You can group variogram models to meet the LMC conditions by selecting the single variable models from the drop-down list.

LMC Validation requires that the single variable variograms are standardized and the cross variogram is not standardized.

Grouping models will synchronize the following model parameters:

• Major

• Semi

• Minor

• Bearing

• Plunge

• Dip

Therefore, changing these values in one of the models will update it in the whole group.

Note:  The nugget and structure sill are not synchronized.

Messages indicating any errors will be displayed.

Important:  For the nugget and the structure sill, the cross variogram value square must be lower or equal to the product of the direct variograms.

OK

Click to save the edits and exit the panel.

Cancel

Click to exit the panel without saving.
