Add/remove variable

Use the Add/remove variable command to add numeric variables or, if desired, remove both text and numeric variables from a nominated block model.

Block model

Select the block model that you want to edit.

The drop-down list contains all block models found within the current working directory. Click Browse to select a file from another location.

Input from file

Select the file containing the variable information that you want to add or remove. The drop-down list contains all files found in the current working directory. Click Browse to select a file from another location.

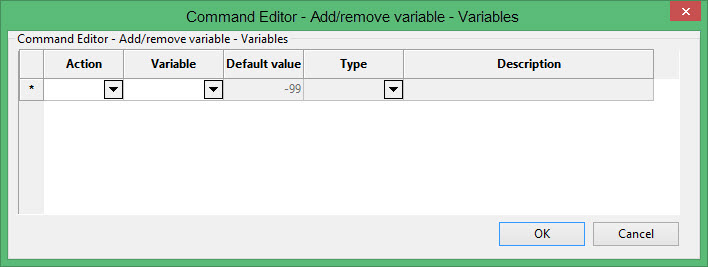

Specify whether you are adding or removing a variable, followed by the name of the variable that you are adding or removing. When adding variables, you will need to specify a default value, the type of numerical variable that you are adding as well as a description. Click the OK to return to the Add/remove variable panel.

Click OK to add the command and return to the Command Editor panel.
