Variogram Type

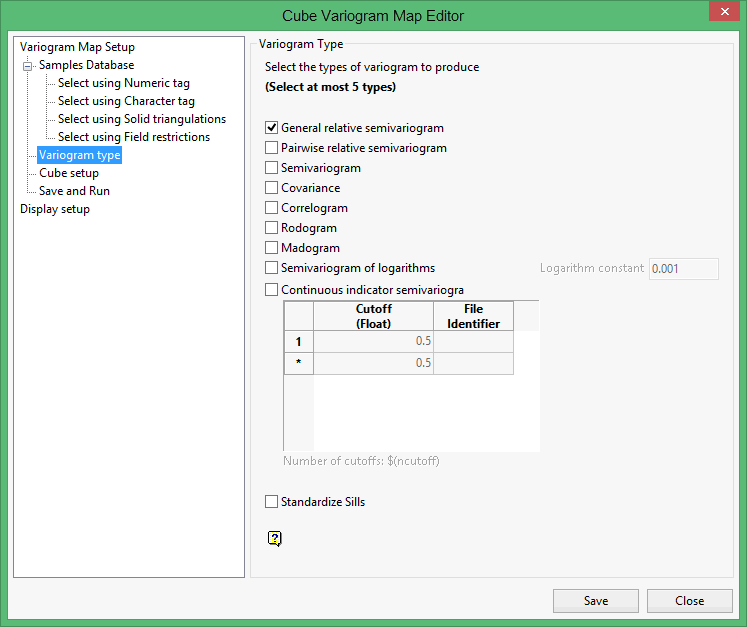

This section of the interface to select the type of variograms to create.

Check the types of variograms to create. There are 10 types available; however, only 5 can be produced in one variography run.

General relative semivariogram

This is the similar to the standard semivariogram divided by the mean of the data values.

Pairwise relative semivariogram

This is similar to the standard semivariogram with each difference divided by the mean of the sample values.

Semivariogram

This is the standard semivariogram.

Cross semivariogram

Covariance

Correlogram

Rodogram

Madogram

Semivariogram of logarithms

Indicator semivariogram

Transform data is: and compute the semivariogram.

where:

Standardise Sills

Note: This option is only applicable on a semivariogram. Standardised sills cannot be applied to other types of variograms.

Select this check box to standardise the variogram sill be dividing the results by the sample variance. This is useful when calculating a semivariogram because instead of reaching the sill at the sample variance, it will reach it at 1.
