Group Manager

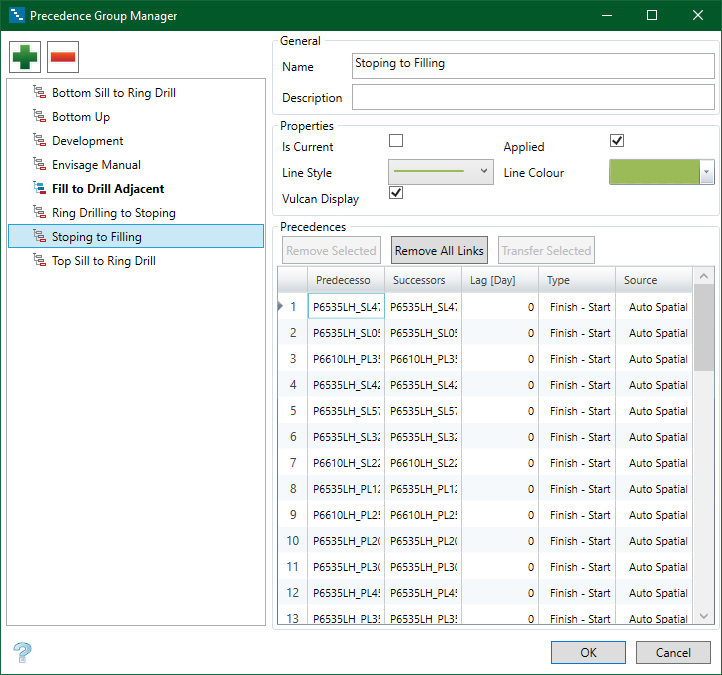

Use the Precedence Group Manager panel to add, edit, and remove precedence groups.


Instructions

On the Precedences tab, in the Precedence Group group, click Group Manager to display the Precedence Group Manager panel.

Add a new item. (Insert)
Remove (Del)

General

Name

Enter a name for the group.

Description

Enter a brief description of the group.

Properties

Is Current

Select this check box to make this precedence group the current group.

Applied

Select this check box if you want the precedences from this group to be applied.  Clear this check box if you do not want the precedences from this group to be applied.

Line Style

Select a line style for the precedence. This line style will be used for the precedence in the Gantt Chart area.

Line Color

Select a color for the precedence. This line color will be used for the precedence in the Gantt Chart area.

Precedences

Remove Selected

Highlight activities in the list and then click Remove Selected to remove the activities from the precedence group.

Predecessors

Displays the predecessor of the activity.

Successors

Displays the successor of the activity.

Lag [Day]

Displays the lag time between the precedences.

Type

Displays the type of precedence, such as Finish-Start or Start-Finish.

Source

Displays the source of the precedence, such as whether the precedence was created in the Gantt Scheduler or in Vulcan.
