Open Resource Chart

Use this option to see each activity assigned to each resource. It produces a chart to show resource under and overallocations.


Instructions

On the Resources tab, in the Resources group, click Open Resource Chart to display a chart to showing resource allocations.

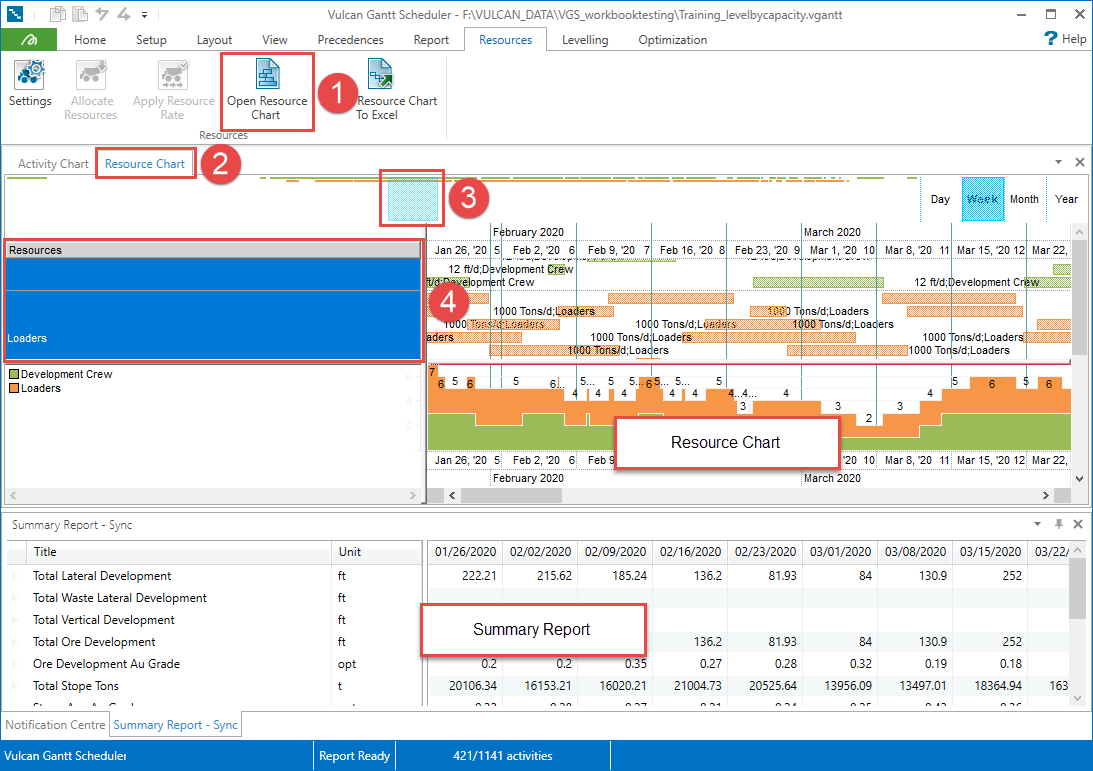

Generating the Resource Chart

  1. Click the Open Resource Chart icon.

  2. A new tab is created labelled Resource Chart.

  3. Position the information window to the location that shows the dates you want to see displayed in the chart by dragging it to the left or right.

  4. Select the resources you want to view from the Resources pane on the left side. To select more than one hold down the Ctrl key and select multiple resources. A list will appear below the Resources pane. The list of available resources is set up by clicking the Settings icon.
