Colour by Attribute

Use this option to colour triangulations by attribute values.


On the Gantt menu, click on Colour by Attributes or...

On the View tab, in the Color group, click Vulcan Coloring by Attribute to display the interface in Vulcan.

Example attributes include Resource, Start Date, or Diluted Grade.

Vulcan Colouring by Attribute configuration is saved to the gantt.colour_spec located in the work area.

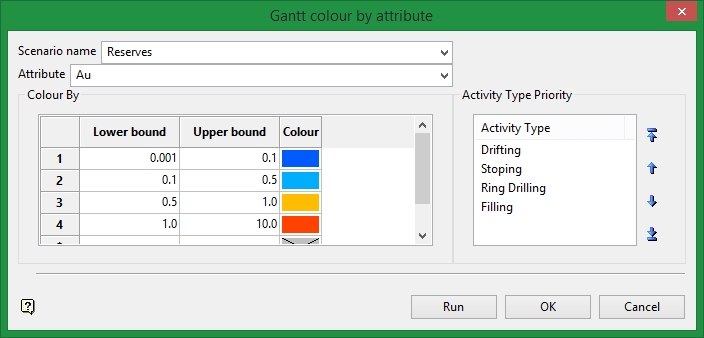

Scenario name

Either select a scenario name for the drop-down list, or enter a new one. Each specification file can contain multiple colouring scenarios.

Attribute

Select the attribute from the drop-down list. The table to set up the colouring parameters will change depending on the attribute selected.

Colour By

Enter the range parameters and colour into the table.

Activity Type Priority

Use the up and down arrows to assign the order of priority for your activity types.

Buttons

Run

Click to save the settings, assign the colours, then close the panel.

OK

Click to save the parameters and close the panel without running.

Cancel

Click to exit the panel without saving.

To speed the application of triangulation colours based upon attributes, select Smooth Shading in the triangulation properties.

Tip
  • Certain legends have different strengths.

    • If an alphanumeric legend is required, create a STRATA legend.

    • CONTOUR legends create intervals.

    • Use BLOCK legends to represent grade data.

  • The Date Setup Format in Settings > Preferences > Miscellaneous must match the format used in the Colour by Attributes legend if colouring by a date field such as Start or End.

  • Mining directions are required for triangulations when colouring by periods.
