Legend and Patterns

Legend

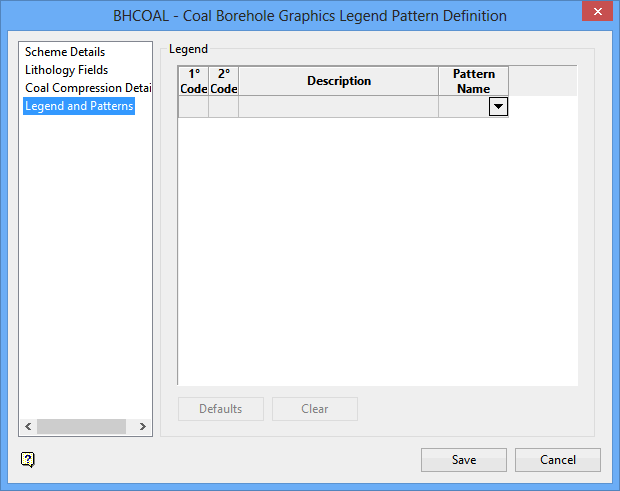

Type in the 1st coal code in column 1 and, if available, the second coal code in column 2. Type in the description of the coal code and select a pattern to apply to the borehole for each coal code from the drop down list.

These patterns are from the Bore Hole Graphics Pattern Chart under the menu option Plot Available Pattern Table (symleg.bgq).
