Coal Borehole Graphics Pattern Definition

Instructions

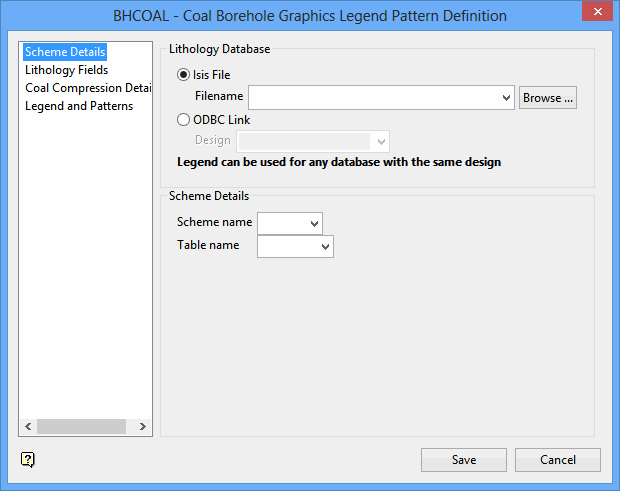

On the Geology menu, point to Drilling Utilities, and then click Coal Borehole Graphics Pattern Definition to display the BHCOAL - Coal Borehole Graphics Legend Pattern Definition panel.

Scheme name / Table name

Select scheme and table name from the drop-down menus. If no Scheme name and Table name are available and this is the first time the information is being input, create a new name for each.

Note:  This is not the same as the Scheme file <Project Prefix>.scd. Rather, it is unique to borehole graphics. If has a file name structure of <Environment>bhc.leg
