Lithology

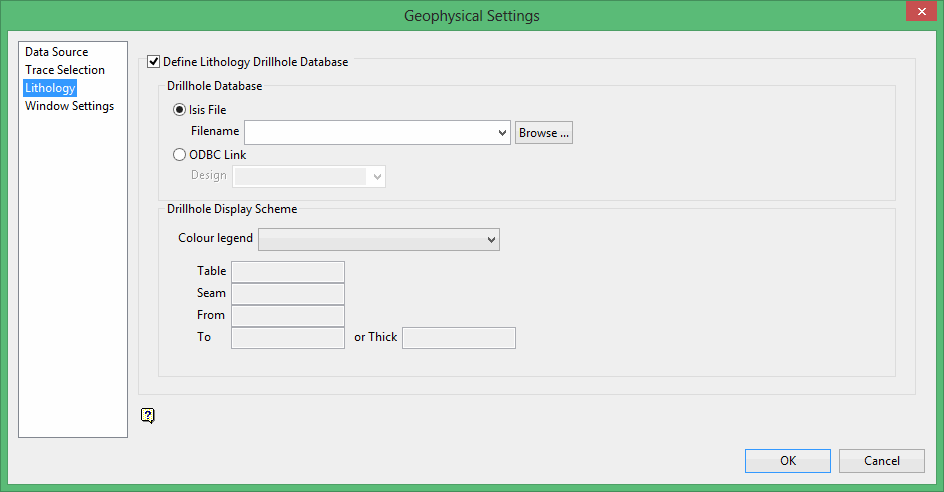

Selections made in this panel will populate the Lithology field in the Trace Selection panel.

Define Lithology Drillhole Database

Select this check box if you want to use a database do define the lithology. If this check box is not selected, the Lithology field in the Trace Selection panel is disabled.

Drillhole Display Scheme

Enter or select a Colour Legend from the drop-down menu. This colour legend will apply to the lithology trace on the open window.

Click OK.
